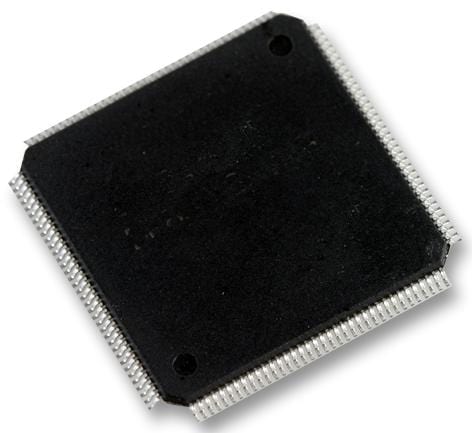

NXP - SPC5643LF2MLQ1 - 32 Bit Microcontroller, Power Architecture, 120MHz, Memory 1MB, RAM 128KB, CAN, SPI, UART, LQFP-144
- Product Range: MPC5 Family MPC56xx Series Microcontrollers
- Architecture: Power Architecture
- MCU Core Size: 32bit
- Program Memory Size: 1MB
- RAM Memory Size: 128KB
- CPU Speed: 120MHz
- No. of I/O's: -
- MCU Case Style: LQFP
- No. of Pins: 144Pins
- Embedded Interface Type: CAN, SPI, UART
- MCU Applications: Automotive
- Supply Voltage Min: 3V
- Supply Voltage Max: 3.6V
- MCU Family: MPC5
- MCU Series: MPC56xx
- Automotive Qualification Standard: AEC-Q100
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
- Controller Family/Series: MPC56xx
- MPU Core Size: 32bit
- No. of PWM Channels: 4
- No. of Timers: 3
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +125°C
- Oscillator Type: External, Internal
- Peripherals: ADC, DMA, PWM, Timer
- Program Memory Size: 1MB
- Supply Voltage Range: 3V to 3.6V
