SPC00444S184 Wire, PTFE, A, Gr/YE, 19/0.15mm, 25m Brand Rex

BRAND REXUGS :SPC00444S184 Code de commande:1639035

Prix:
Prix ​​promotionnel€116,59

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (19 unité)

Documents et téléchargements

description

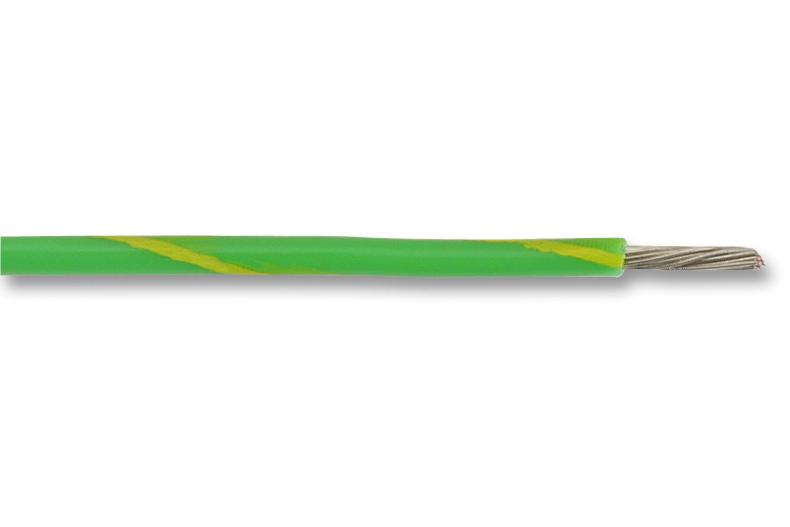

BRAND REX - SPC00444S184 - Wire, Stranded, Equipment, PTFE, Green, Yellow, 22 AWG, 0.338 mm², 82 ft, 25 m

  • Jacket Material: PTFE
  • Jacket Colour: Green, Yellow
  • Wire Gauge: 22AWG
  • Conductor Area CSA: 0.338mm²
  • Reel Length (Imperial): 82ft
  • Reel Length (Metric): 25m
  • No. of Max Strands x Strand Size: 19 x 0.15mm
  • Voltage Rating: 300V
  • Conductor Material: Silver Plated Copper
  • External Diameter: 1.1mm
  • Approval Specification: -
  • Product Range: -
  • SVHC: No SVHC (07-Jul-2017)
  • Conductor Make-up: 19 / 0.15mm
  • Conductor Plating: Silver
  • Current Rating: 8A
  • Operating Temperature Max: 190°C
  • Operating Temperature Min: -50°C
  • Outer Diameter: 1.1mm
  • Standard: BS3G210, Def std 61-12 pt 8
  • Voltage Rating VAC: 300V
  • Wire Size: 22AWG
