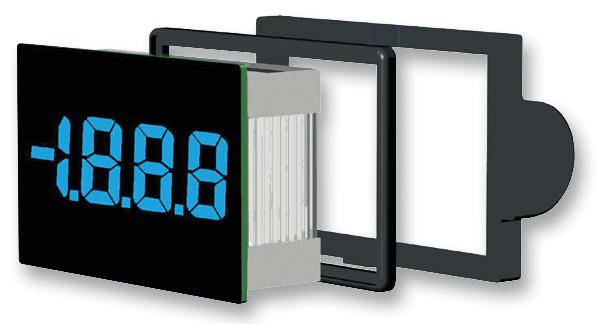

SP 300-Blue Voltmeter, LED, 3.5DIGIT Lascar

LASCAR - SP 300-BLUE - Digital Panel Meter, , 3-1/2 Digits, DC Voltage, 0mV to 200mV

• No. of Digits / Alpha: 3-1/2
• Meter Function: DC Voltage
• Meter Range: 0mV to 200mV
• Digit Height: 9.4mm
• Panel Cutout Height: 21.3mm
• Panel Cutout Width: 34.1mm
• Supply Voltage Min: 4.75V
• Supply Voltage Max: 5.25V
• Operating Temperature Min: 0°C
• Operating Temperature Max: 50°C
• Product Range: -
• SVHC: No SVHC (15-Jan-2019)
• Accuracy: 0.1% (± 1 count)
• Backlighting Colour: Blue
• Character Height: 9.4mm
• Display Size: 33mm x 20.5mm
• Display Technology: LED
• External Depth: 16.75mm
• External Length / Height: 22.4mm
• External Width: 35.1mm
• Leakage Current: 1pA
• Linearity: ± 1 count
• Operating Temperature Range: 0°C to +50°C
• Standard: Auto-zero and Auto-polarity
• Supply Current: 50mA
• Supply Voltage DC Max: 5.25VDC
• Supply Voltage DC Min: 4.75VDC
• Supply Voltage Range: 4.75V to 5.25V
• Supply Voltage V DC: 5VDC
• Temperature Stabilty: 150 ppm/°C
• Voltage Measuring Range DC: 200mv Full Scale Reading
