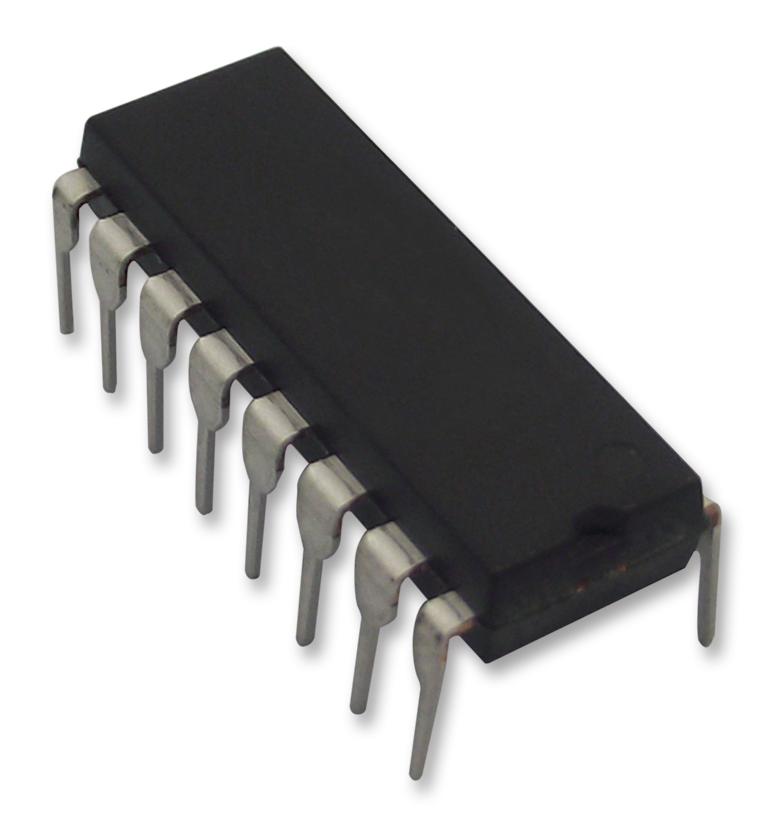

TEXAS INSTRUMENTS - SN74LS165AN - Shift Register, 74LS165, Parallel to Serial, Serial to Serial, 1 Element, 8 bit, DIP, 16 Pins
- Logic Family / Base Number: 74LS165
- Shift Register Function: Parallel to Serial, Serial to Serial
- No. of Elements: 1 Element
- No. of Bits Per Element: 8bit
- Logic Case Style: DIP
- No. of Pins: 16Pins
- Supply Voltage Min: 4.75V
- Supply Voltage Max: 5.25V
- IC Output Type: Differential
- Logic IC Family: 74LS
- Logic IC Base Number: 74165
- Operating Temperature Min: 0°C
- Operating Temperature Max: 70°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Base Number: 74165
- Frequency: 35MHz
- Input Current Max: 100µA
- Logic Function Number: 74165
- Logic IC Base Number: 74165
- Logic IC Function: Parallel-Load 8bit Shift Register
- Logic Type: Shift Register
- No. of Elements: 1Elements
- Operating Temperature Range: 0°C to +70°C
- Power Dissipation Ptot Max: 90mW
- Supply Voltage Range: 4.75V to 5.25V
- Termination Type: Through Hole
