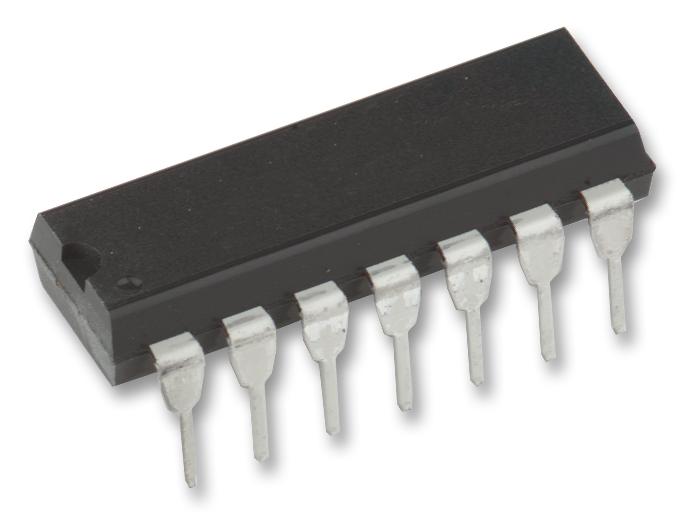

TEXAS INSTRUMENTS - SN74LS09N - Logic IC, AND Gate, 2 Inputs, 14 Pins, DIP
- Logic Family / Base Number: 74LS09
- Logic Type: AND
- Output Current: 8mA
- No. of Inputs: 2
- Supply Voltage Min: 4.75V
- Supply Voltage Max: 5.25V
- Logic Case Style: DIP
- No. of Pins: 14Pins
- Logic IC Family: 74LS
- Logic IC Base Number: 7409
- Operating Temperature Min: 0°C
- Operating Temperature Max: 70°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Logic Function Number: 7409
- Logic IC Base Number: 7409
- Logic IC Function: Quad 2-Input Positive AND Gate with Open Collector Output
- Operating Temperature Range: 0°C to +70°C
- Supply Voltage Range: 4.75V to 5.25V
- Termination Type: Through Hole
