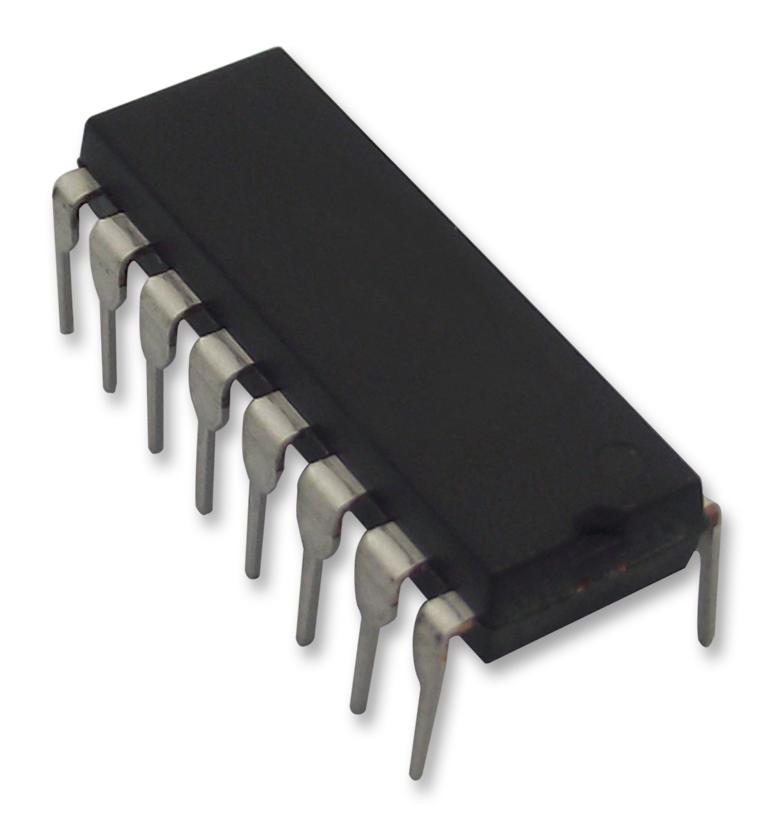

TEXAS INSTRUMENTS - SN74HC257N - Data Selector / Multiplexer, 3-State Outputs, HC Family, 4 Channels, 2:1, 2 V to 6 V, DIP-16
- Logic Family / Base Number: 74HC257
- Logic Type: Multiplexer
- No. of Channels: 4Channels
- Line Configuration: 2
- Supply Voltage Min: 2V
- Supply Voltage Max: 6V
- Logic Case Style: DIP
- No. of Pins: 16Pins
- Logic IC Family: 74HC
- Logic IC Base Number: 74257
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Base Number: 74
- IC Generic Number: 74HC257
- Logic Function Number: 74257
- Logic IC Base Number: 74257
- Logic IC Function: Quadruple 2-Line To 1-Line Data Selector/Multiplexer (3-State)
- Operating Temperature Range: -40°C to +85°C
- Output Current Max: 7.8mA
- Ratio: 2
- Supply Voltage: 5V
- Supply Voltage Range: 2V to 6V
