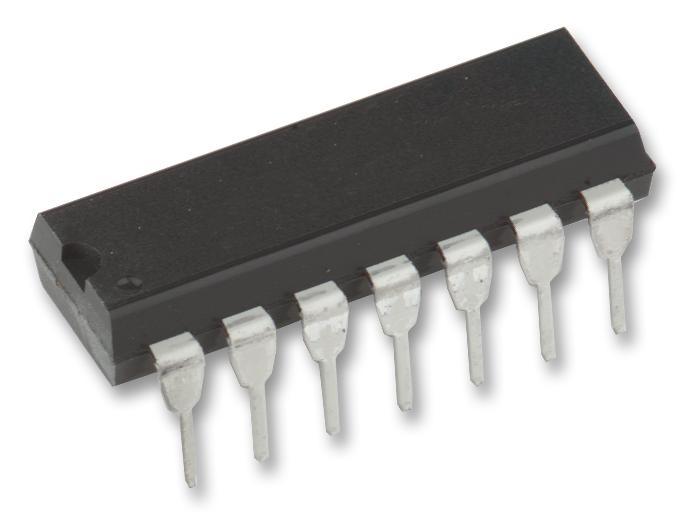

TEXAS INSTRUMENTS - SN74HC14N - Logic IC, Inverter, 1 Inputs, 14 Pins, DIP, SNx4HC14
- Logic Family / Base Number: 74HC14
- Logic Type: Inverter Schmitt Trigger
- Output Current: 5.2mA
- No. of Inputs: 1
- Supply Voltage Min: 2V
- Supply Voltage Max: 6V
- Logic Case Style: DIP
- No. of Pins: 14Pins
- Logic IC Family: 74HC
- Logic IC Base Number: 7414
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: SNx4HC14 Series
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Base Number: 74
- Device Marking: SN74HC00
- IC Generic Number: 74HC14
- Logic Function Number: 7414
- Logic IC Base Number: 7414
- Logic IC Function: Hex Inverter with Schmitt Trigger
- Operating Temperature Range: -40°C to +85°C
- Supply Voltage: 5V
- Supply Voltage Range: 2V to 6V
