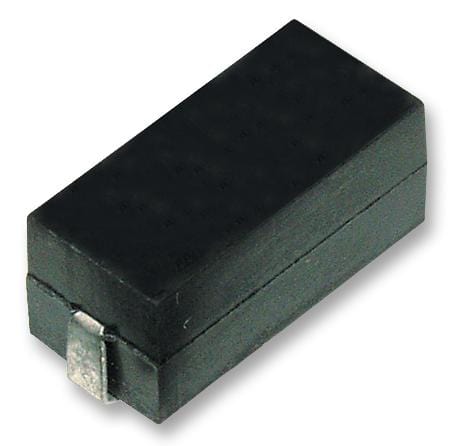

CGS - TE CONNECTIVITY - SMW533RJT - SMD Chip Resistor, 33 ohm, ± 5%, 5 W, SMD, Wirewound, High Power
- Resistor Case Style: SMD
- Resistance: 33ohm
- Product Range: SMW Series
- Voltage Rating: 500V
- Resistor Element Material: Wirewound
- Power Rating: 5W
- Resistance Tolerance: ± 5%
- Temperature Coefficient: ± 200ppm/°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- External Depth: 6.8mm
- External Length / Height: 13.5mm
- External Width: 7.3mm
- Operating Temperature Max: 200°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +200°C
- Resistor Mounting: Surface Mount Device
- Tolerance +: 5%
- Tolerance -: 5%
