SML-LX0603GW-Tr LED, SMD Green LUMEX

LUMEXUGS :SML-LX0603GW-TR Code de commande:1611307

Prix:
Prix ​​promotionnel€0,46

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (5432 unité)

Documents et téléchargements

description

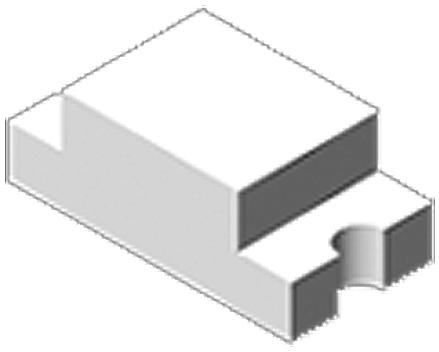

LUMEX - SML-LX0603GW-TR - LED, QuasarBrite, Green, SMD, 0603, 20 mA, 2.2 V, 565 nm

  • LED Colour: Green
  • LED Mounting: SMD
  • LED Case Size: 0603
  • Forward Current If: 20mA
  • Forward Voltage: 2.2V
  • Wavelength Typ: 565nm
  • Luminous Intensity: 18mcd
  • Viewing Angle: 160°
  • Lens Shape: Rectangular
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 2 - 1 year
  • SVHC: No SVHC (27-Jun-2018)
  • Bulb Size: 0.8mm x 1mm
  • Dominant Wavelength: 565nm
  • Forward Current If Max: 20mA
  • Forward Voltage VF Max: 2.2V
  • LED Type: Standard
  • Luminous Intensity Typ: 18mcd
  • No. of Pins: 2Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -25°C
  • Operating Temperature Range: -25°C to +85°C
