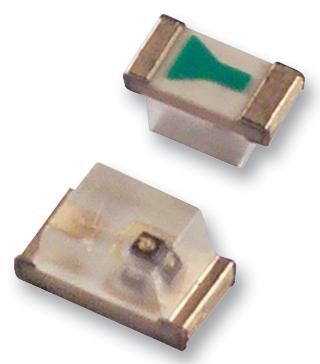

SML-D12Y8WT86 LED, SMD, 0603, Yellow ROHM

ROHMUGS :SML-D12Y8WT86 Code de commande:1685095

Prix:
Prix ​​promotionnel€0,56

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2900 unité)

Documents et téléchargements

description

ROHM - SML-D12Y8WT86 - LED, Yellow, SMD, 0603, 20 mA, 2.2 V, 593 nm

  • LED Colour: Yellow
  • LED Mounting: SMD
  • LED Case Size: 0603
  • Forward Current If: 20mA
  • Forward Voltage: 2.2V
  • Wavelength Typ: 593nm
  • Luminous Intensity: 63mcd
  • Viewing Angle: -
  • Lens Shape: Rectangular
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 3 - 168 hours
  • SVHC: No SVHC (15-Jan-2018)
  • Bulb Size: 0.8mm x 1.2mm
  • Dominant Wavelength: 590nm
  • Forward Current If Max: 20mA
  • Forward Voltage VF Max: 2.2V
  • LED / Lamp Size: 0603
  • LED Type: Standard
  • Luminous Intensity Typ: 63mcd
  • No. of Pins: 2Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
