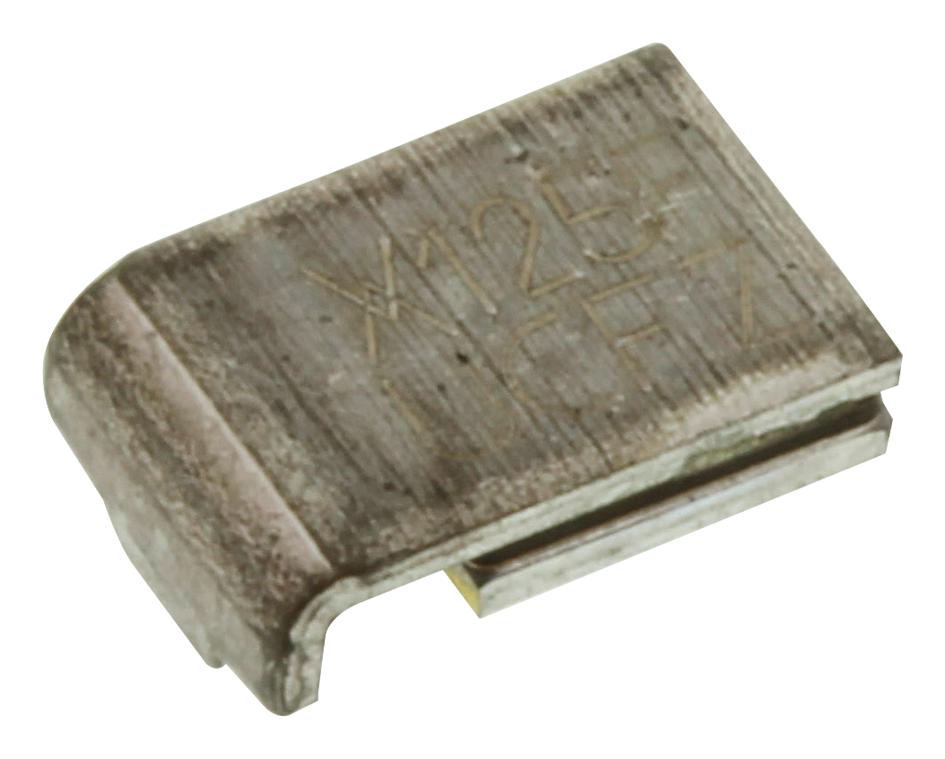

SMD125F-2 PolySwitch, SMD, 1.25A LITTELFUSE

LITTELFUSEUGS :SMD125F-2 Code de commande:1175874

Prix:
Prix ​​promotionnel€1,15

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (4690 unité)

Documents et téléchargements

description

LITTELFUSE - SMD125F-2 - Resettable Fuse, PPTC, 2920 (7351 Metric), PolySwitch, 15 VDC, 1.25 A, 2.5 A, 2 s

  • Thermistor Mounting: SMD
  • Product Range: PolySwitch Series
  • Holding Current: 1.25A
  • Tripping Current: 2.5A
  • Voltage Rating: 15VDC
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jun-2015)
  • Approval Bodies: CSA, TUV
  • Approval Category: UL Recognised
  • Breaking Capacity Current AC: 40A
  • Carrying Current Max: 40A
  • External Depth: 3mm
  • External Length / Height: 7.98mm
  • External Width: 5.44mm
  • Holding Current Max Ih: 1.25A
  • Initial Resistance Max: 0.25ohm
  • Initial Resistance Min: 0.07ohm
  • Operating Voltage: 15V
  • PTC Fuse Case Style: SMD
  • Surface Tripped Temperature Max: 125°C
  • Tab Blade Thickness: 0.56mm
  • Tab Width: 2.41mm
  • Termination Type: Surface Mount Device
  • Thermistor Type: PTC Resettable Fuse
