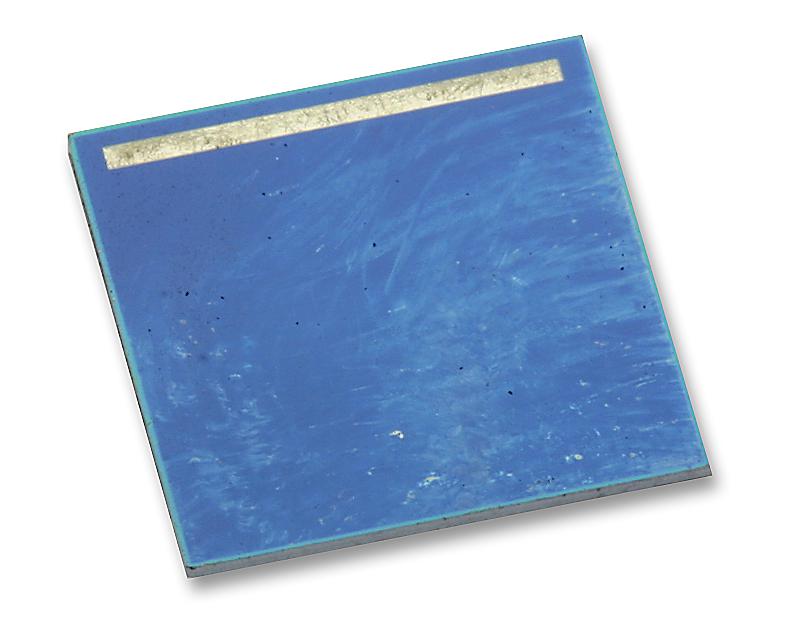

SLCD-61N2 Photodiode, Planar Chip Advanced PHOTONIX

ADVANCED PHOTONIXUGS :SLCD-61N2 Code de commande:1218987

Prix:
Prix ​​promotionnel€8,11

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1537 unité)

Documents et téléchargements

description

ADVANCED PHOTONIX - SLCD-61N2 - Photodiode, Planar Chip, 60 °, 1 µA, 930 nm, Planar-1

  • No. of Pins: 1Pins
  • Diode Case Style: Planar
  • Wavelength of Peak Sensitivity: 930nm
  • Angle of Half Sensitivity ±: 60°
  • Dark Current: 1µA
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 105°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • Active Area: 21.4mm²
  • Breakdown Voltage Vbr: 20V
  • Diode Type: Photodiode
  • External Depth: 5.1mm
  • External Length / Height: 5.1mm
  • Height: 5.1mm
  • Open Circuit Voltage: 0.4V
  • Operating Temperature Range: -40°C to +105°C
  • Peak Wavelength: 930nm
  • Reverse Voltage Vr Max: 20V
  • Sensitivity: 0.55A/W
  • Short Circuit Current: 1.2mA
  • Wavelength Typ: 930nm
