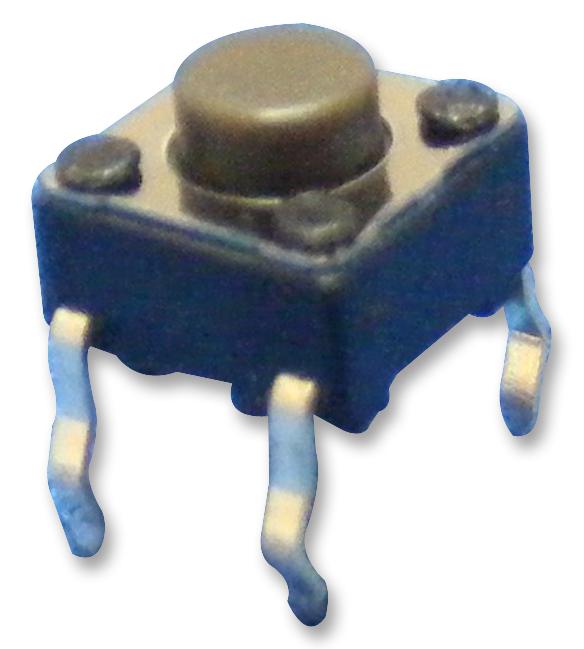

SKHHAMA010 Switch, Tactile, Pcb, 1.57N Alps Alpine

ALPS ALPINEUGS :SKHHAMA010 Code de commande:1656424

Prix:
Prix ​​promotionnel€0,63

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1617 unité)

Documents et téléchargements

description

ALPS ALPINE - SKHHAMA010 - Tactile Switch, SKHH, Top Actuated, Through Hole, Round Button, 160 gf, 50mA at 12VDC

  • Product Range: SKHH Series
  • Actuator Orientation: Top Actuated
  • Switch Mounting: Through Hole
  • Actuator Style: Round Button
  • Actuating Force: 160gf
  • Contact Rating: 50mA at 12VDC
  • Switch Dimensions (L x W): 6mm x 6mm
  • IP Rating: -
  • Illumination: Non Illuminated
  • SVHC: No SVHC (20-Jun-2016)
  • Actuation Type: Top
  • Colour: Grey
  • Contact Current @ Contact Voltage DC Max: 50mA
  • Contact Current @ Contact Voltage DC Min: 10µA
  • Contact Current DC Max: 50mA
  • Contact Current Max: 50mA
  • Contact Resistance: 100mohm
  • Contact Voltage DC Max: 12VDC
  • Contact Voltage DC Min: 1VDC
  • Contact Voltage DC Nom: 12V
  • External Depth: 6mm
  • External Length / Height: 3.5mm
  • External Width: 6mm
  • Insulation Resistance: 100Mohm
  • Insulation Resistance Voltage: 100VDC
  • No. of Electrical Operations: 500000
  • Operating Force: 1.57N
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -30°C
  • Pre-travel: 0.25mm
  • Proof Voltage: 250VAC
  • Shaft Length: 5mm
  • Switch Operation: Off-On
  • Switch Terminals: Solder
