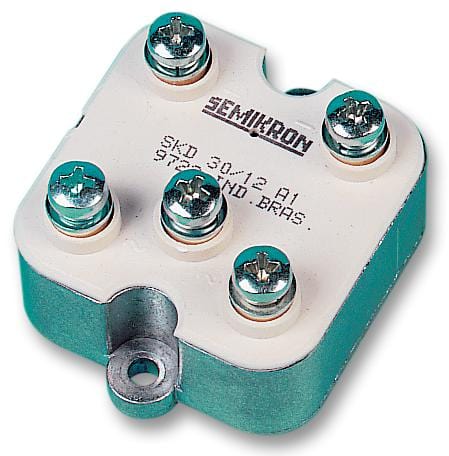

SEMIKRON - SKD30/12A1 - Bridge Rectifier, Three Phase, 1.2 kV, 30 A, Module, 5 Pins, 2.2 V
- No. of Phases: Three Phase
- Repetitive Reverse Voltage Vrrm Max: 1.2kV
- Forward Current If(AV): 30A
- Bridge Rectifier Case Style: Module
- Forward Voltage VF Max: 2.2V
- No. of Pins: 5Pins
- Operating Temperature Max: 150°C
- Product Range: SKD Series
- SVHC: No SVHC (15-Jun-2015)
- Body Height Max: 55mm
- Diode Mounting Type: Panel
- Diode Type: Bridge Rectifier
- External Depth: 45mm
- External Length / Height: 24mm
- External Width: 55mm
- Forward Surge Current Ifsm Max: 370A
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +150°C
- Output Current Max: 30A
