Sip-04A Switch, Sil, R/A, 4WAY multicomp Pro

MULTICOMP PROUGS :SIP-04A Code de commande:1521994

Prix:
Prix ​​promotionnel€2,78

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1775 unité)

Documents et téléchargements

description

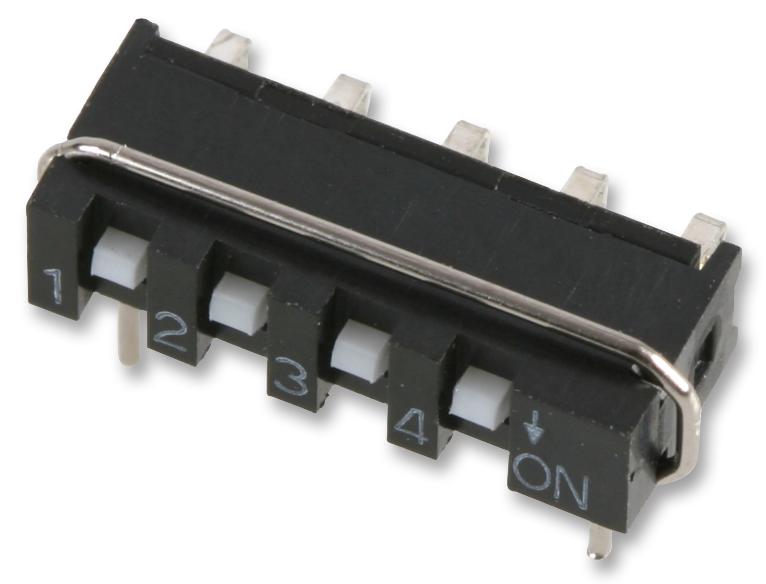

MULTICOMP PRO - SIP-04A - DIP / SIP Switch, 4 Circuits, Slide, Through Hole, SPST, 5 VDC, 10 mA

  • No. of Circuits: 4Circuits
  • Switch Actuator Style: Slide
  • Switch Mounting: Through Hole
  • Contact Configuration: SPST
  • Contact Voltage DC Max: 5VDC
  • Contact Current DC Max: 10mA
  • Product Range: SIP Series
  • Switch Type: SIP
  • SVHC: No SVHC (15-Jan-2019)
  • Actuation Type: Flat
  • Actuator Type: Flush Slide
  • Contact Current @ Contact Voltage DC Max: 100mA
  • Dielectric Strength VDC: 300VAC
  • External Depth: 5mm
  • External Width: 12.7mm
  • Flammability Rating: UL94V-0
  • Height: 3.2mm
  • Lead Spacing: 2.54mm
  • No. of Electrical Operations: 500
  • No. of Mechanical Operations: 500
  • No. of Positions: 4Ways
  • Operating Force: 7.84N
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -30°C
  • Pin Configuration: SIL
  • Pitch Spacing: 2.54mm
  • Switching Current DC Max: 10mA
  • Terminal Plating: Tin
