SI7456DP-T1-GE3 MOSFET, N, SO-8 Vishay

VISHAYUGS :SI7456DP-T1-GE3 Code de commande:9550704

Prix:
Prix ​​promotionnel€2,57

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (8044 unité)

Documents et téléchargements

description

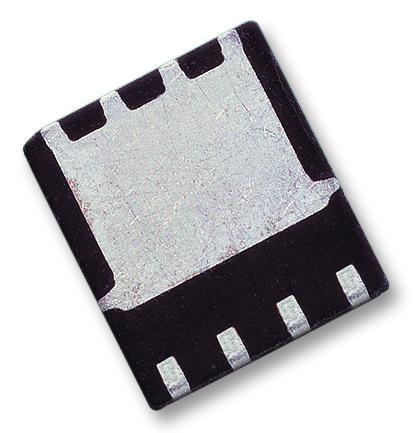

VISHAY - SI7456DP-T1-GE3 - Power MOSFET, N Channel, 100 V, 5.7 A, 0.021 ohm, PowerPAK SO, Surface Mount

  • Transistor Polarity: N Channel
  • Continuous Drain Current Id: 5.7A
  • Drain Source Voltage Vds: 100V
  • On Resistance Rds(on): 0.021ohm
  • Rds(on) Test Voltage Vgs: 10V
  • Threshold Voltage Vgs: 4V
  • Power Dissipation Pd: 1.9W
  • Transistor Case Style: PowerPAK SO
  • No. of Pins: 8Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (15-Jun-2015)
  • Current Temperature: 25°C
  • Device Marking: SI7456DP
  • External Depth: 5.26mm
  • External Length / Height: 1.2mm
  • External Width: 6.2mm
  • Full Power Rating Temperature: 25°C
  • Junction Temperature Tj Max: 150°C
  • Junction Temperature Tj Min: -55°C
  • Junction to Case Thermal Resistance A: 1.8°C/W
  • N-channel Gate Charge: 44nC
  • Operating Temperature Min: -55°C
  • Pulse Current Idm: 40A
