description

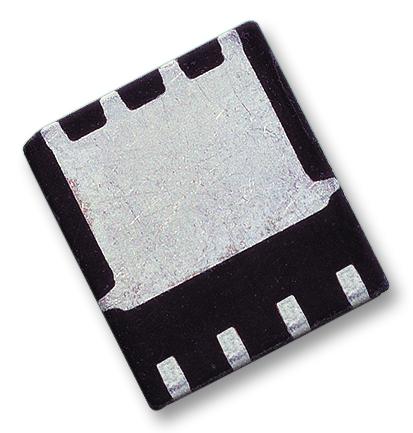

VISHAY - SI7450DP-T1-GE3 - Power MOSFET, N Channel, 200 V, 3.2 A, 0.065 ohm, PowerPAK SO, Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 3.2A
- Drain Source Voltage Vds: 200V
- On Resistance Rds(on): 0.065ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 4.5V
- Power Dissipation Pd: 1.9W
- Transistor Case Style: PowerPAK SO
- No. of Pins: 8Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jun-2015)
- Current Id Max: 3.2A
- Current Temperature: 25°C
- External Depth: 5.26mm
- External Length / Height: 1.2mm
- External Width: 6.2mm
- Full Power Rating Temperature: 25°C
- Junction Temperature Tj Max: 150°C
- Junction Temperature Tj Min: -55°C
- Junction to Case Thermal Resistance A: 1.8°C/W
- N-channel Gate Charge: 42nC
- On State Resistance Max: 80mohm
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Pulse Current Idm: 40A
- Voltage Vds Typ: 200V
- Voltage Vgs Max: 20V
- Voltage Vgs Rds on Measurement: 10V
- Voltage Vgs th Min: 2V
