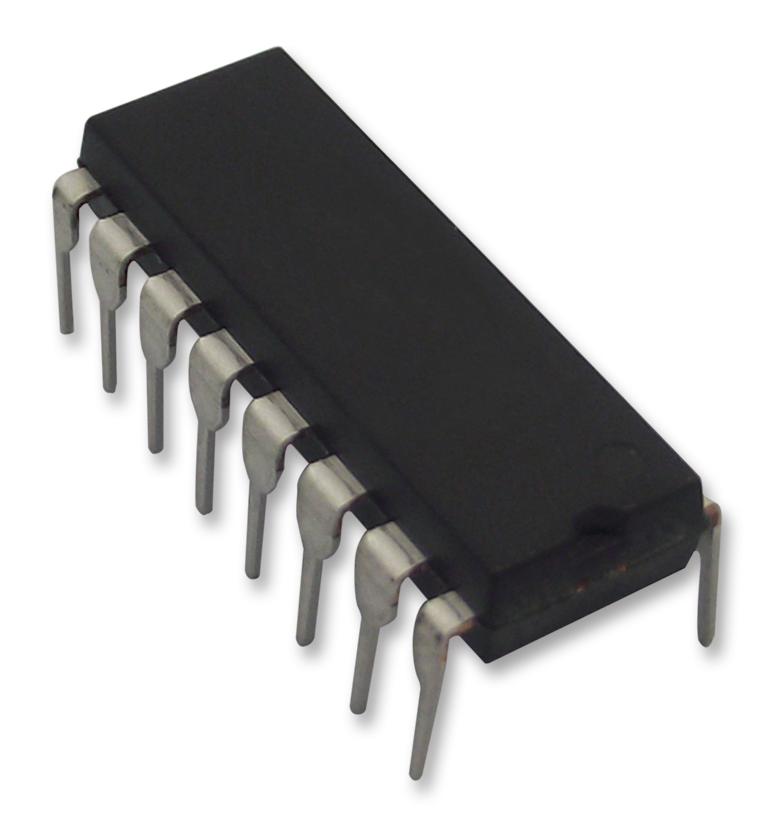

TEXAS INSTRUMENTS - SG3524N - Regulating PWM, 2 outputs, 8V-40V supply, 5 V/100mA out, 722 kHz, DIP-16
- Input Voltage: -
- Output Voltage: 5.4V
- Output Current: 100mA
- Supply Voltage Min: 8V
- Supply Voltage Max: 40V
- Controller IC Case Style: DIP
- No. of Pins: 16Pins
- Frequency: 450kHz
- Operating Temperature Min: 0°C
- Operating Temperature Max: 70°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Base Number: 3524
- Controller Type: PWM
- IC Temperature Range: Commercial
- Logic Function Number: 3524
- Operating Temperature Range: 0°C to +70°C
- Output Current Max: 0.1A
- Power Supply IC Type: PWM controller
- Supply Voltage Range: 8V to 40V
- Termination Type: Through Hole
