description

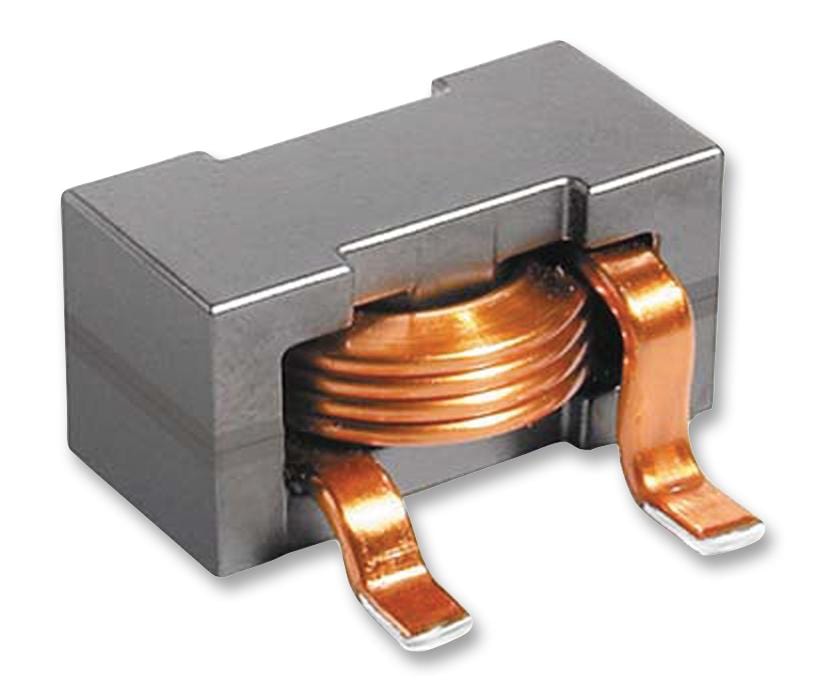

COILCRAFT - SER2013-801MLD - Power Inductor (SMD), 800 nH, 30 A, Shielded, 85 A, SER2000, 19.18mm x 9.27mm x 12.95mm
- Inductance: 800nH
- RMS Current (Irms): 30A
- Inductor Construction: Shielded
- Saturation Current (Isat): 85A
- Product Range: SER2000 Series
- Power Inductor Case: 19.18mm x 9.27mm x 12.95mm
- DC Resistance Max: 0.00182ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 93MHz
