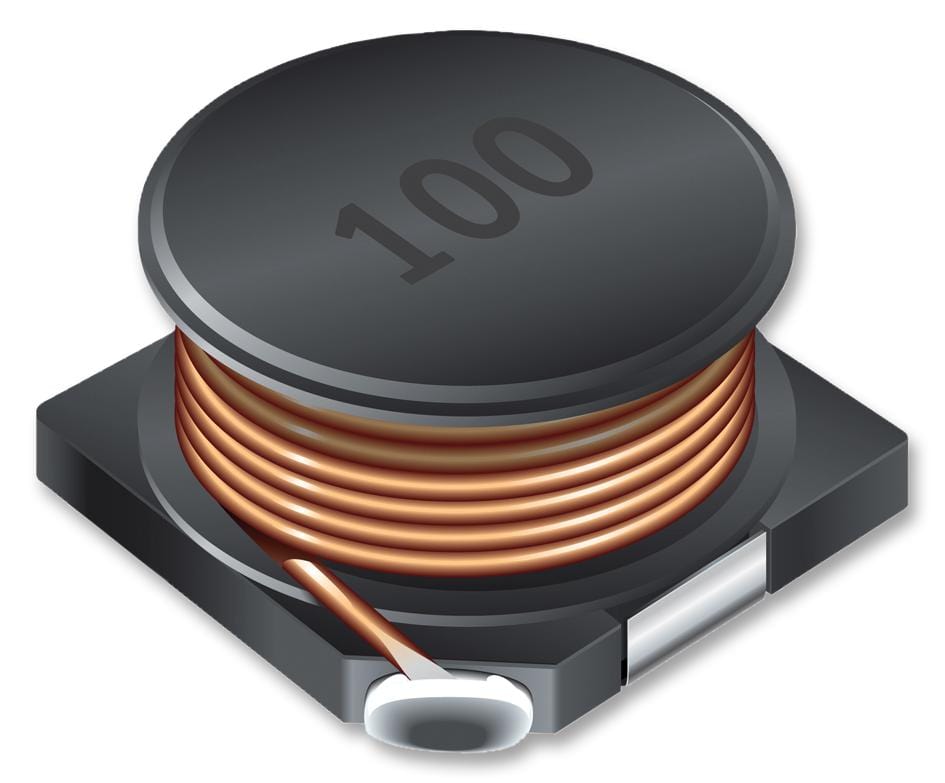

BOURNS - SDR7045-151K - Power Inductor (SMD), 150 µH, 620 mA, Unshielded, 580 mA, SDR7045, 7mm x 7mm x 4.5mm
- Inductance: 150µH
- RMS Current (Irms): 620mA
- Inductor Construction: Unshielded
- Saturation Current (Isat): 580mA
- Product Range: SDR7045 Series
- Power Inductor Case: 7mm x 7mm x 4.5mm
- DC Resistance Max: 0.58ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2018)
- No. of Pins: 2Pins
- Q Factor: 17
- Q Test Frequency: 796kHz
- Self Resonant Frequency Min: 8MHz
