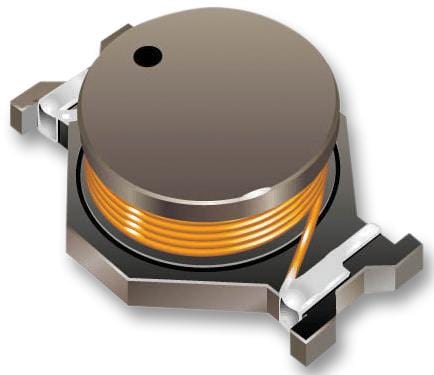

BOURNS - SDR2207-560KL - Power Inductor (SMD), 56 µH, 2.6 A, Unshielded, 4.5 A, SDR2207, 22mm x 15mm x 7mm
- Inductance: 56µH
- RMS Current (Irms): 2.6A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 4.5A
- Product Range: SDR2207 Series
- Power Inductor Case: 22mm x 15mm x 7mm
- DC Resistance Max: 0.0965ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2018)
- Q Factor: 25
- Q Test Frequency: 2MHz
- Self Resonant Frequency Min: 8.3MHz
