description

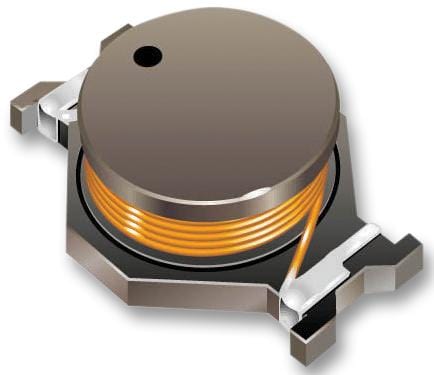

BOURNS - SDR2207-102KL - Power Inductor (SMD), 1 mH, 600 mA, Unshielded, 1 A, SDR2207
- Inductance: 1mH
- RMS Current (Irms): 600mA
- Inductor Construction: Unshielded
- Saturation Current (Isat): 1A
- Product Range: SDR2207 Series
- Power Inductor Case: 22mm x 15mm x 7mm
- DC Resistance Max: 1.8ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2018)
- Q Factor: 15
- Q Test Frequency: 1MHz
- Self Resonant Frequency Min: 3.5MHz
