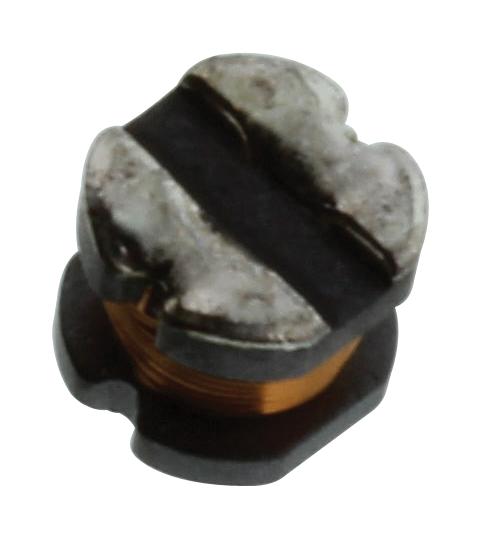

BOURNS - SDR1307-820KL - Power Inductor (SMD), 82 µH, 2.1 A, Unshielded, 3.2 A, SDR1307, 13mm x 13mm x 7mm
- Inductance: 82µH
- RMS Current (Irms): 2.1A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 3.2A
- Product Range: SDR1307 Series
- Power Inductor Case: 13mm x 13mm x 7mm
- DC Resistance Max: 0.14ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2018)
- Q Factor: 18
- Q Test Frequency: 2.52MHz
- Self Resonant Frequency Min: 6MHz
