description

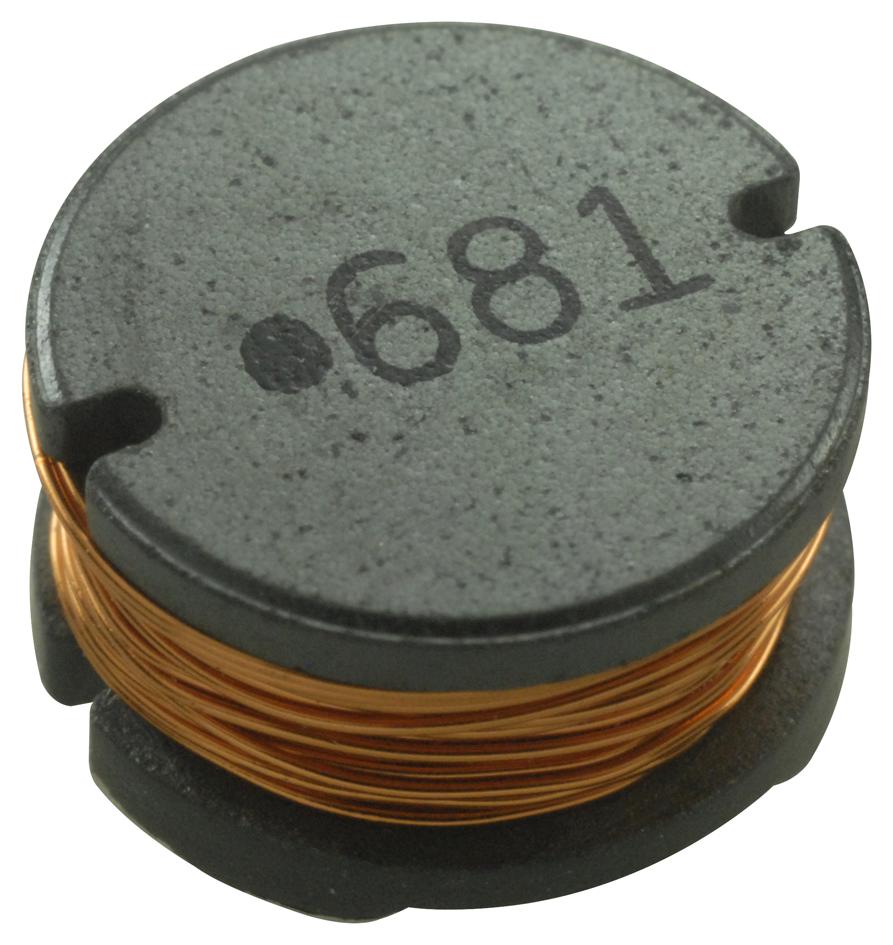

BOURNS - SDR1006-681KL - Power Inductor (SMD), 680 µH, 280 mA, Unshielded, 650 mA, 9.8mm x 9.8mm x 5.8mm
- Inductance: 680µH
- RMS Current (Irms): 280mA
- Inductor Construction: Unshielded
- Saturation Current (Isat): 650mA
- Product Range: -
- Power Inductor Case: 9.8mm x 9.8mm x 5.8mm
- DC Resistance Max: 2.25ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (07-Jul-2017)
- External Depth: 9.8mm
- External Length / Height: 5.8mm
- External Width: 9.8mm
- No. of Pins: 2Pins
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Q Factor: 12
- Q Test Frequency: 796kHz
- Resonant Frequency: 2.1MHz
- Self Resonant Frequency Min: 2.1MHz
- Test Frequency: 0.796MHz
