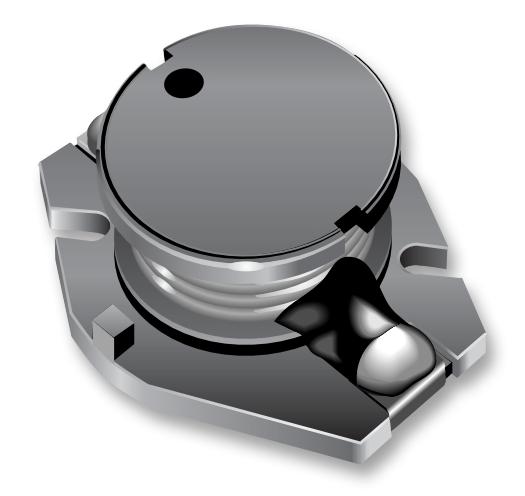

BOURNS - SDR1005-222KL - Power Inductor (SMD), 2.2 mH, 200 mA, Unshielded, 240 mA, 12.7mm x 10mm x 5mm
- Inductance: 2.2mH
- RMS Current (Irms): 200mA
- Inductor Construction: Unshielded
- Saturation Current (Isat): 240mA
- Product Range: -
- Power Inductor Case: 12.7mm x 10mm x 5mm
- DC Resistance Max: 8.2ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (07-Jul-2017)
- External Depth: 10mm
- External Length / Height: 5mm
- External Width: 12.7mm
- Lead Spacing: 7.6mm
- No. of Pins: 2Pins
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Q Factor: 85
- Q Test Frequency: 128kHz
- Resonant Frequency: 2MHz
- Self Resonant Frequency Min: 2MHz
- Test Frequency: 0.128MHz
