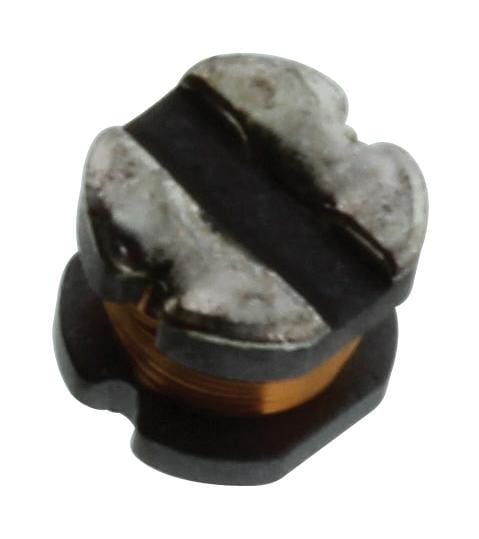

BOURNS - SDR0805-560KL - Power Inductor (SMD), 56 µH, 940 mA, Unshielded, 1.5 A, SDR0805, 7.8mm x 7.8mm x 5.3mm
- Inductance: 56µH
- RMS Current (Irms): 940mA
- Inductor Construction: Unshielded
- Saturation Current (Isat): 1.5A
- Product Range: SDR0805 Series
- Power Inductor Case: 7.8mm x 7.8mm x 5.3mm
- DC Resistance Max: 0.24ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2018)
- Q Factor: 15
- Q Test Frequency: 2.52MHz
- Self Resonant Frequency Min: 9MHz
