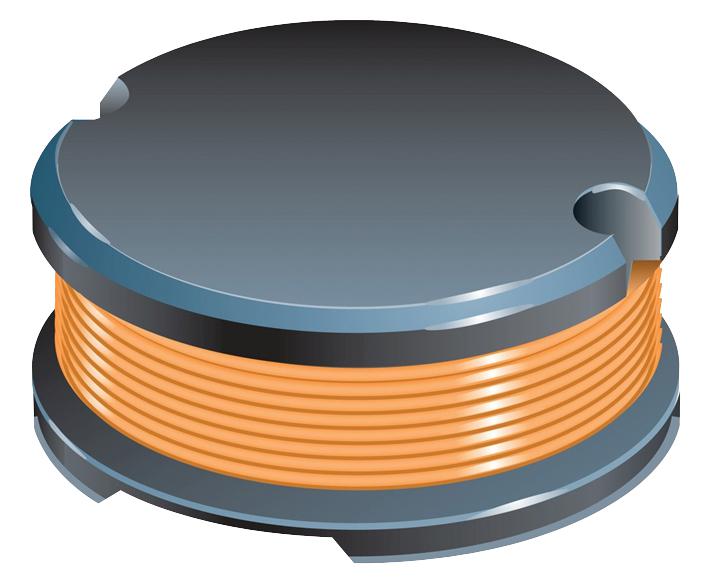

BOURNS - SDR0703-4R7ML - Power Inductor (SMD), 4.7 µH, 1.5 A, Unshielded, 2.1 A, SDR0703, 6.5mm x 4.5mm x 2.7mm
- Inductance: 4.7µH
- RMS Current (Irms): 1.5A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 2.1A
- Product Range: SDR0703 Series
- Power Inductor Case: 6.5mm x 4.5mm x 2.7mm
- DC Resistance Max: 0.1ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2018)
- Lead Spacing: 4mm
- No. of Pins: 2Pins
- Q Factor: 20
- Q Test Frequency: 7.96MHz
- Self Resonant Frequency Min: 60MHz
