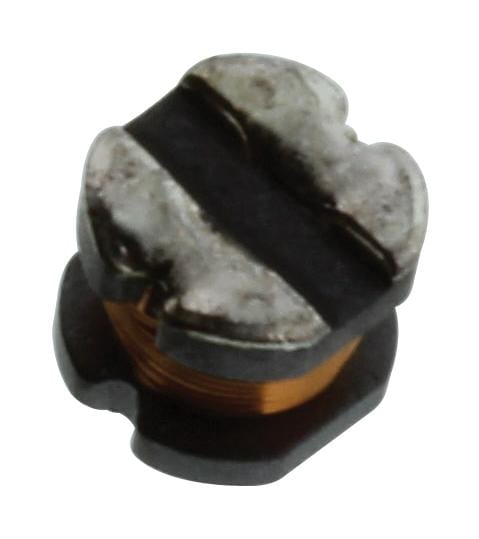

BOURNS - SDR0603-7R5ML - Power Inductor (SMD), 7.5 µH, 1.29 A, Unshielded, 1.6 A, SDR0603, 5.8mm x 5.8mm x 3.9mm
- Inductance: 7.5µH
- RMS Current (Irms): 1.29A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 1.6A
- Product Range: SDR0603 Series
- Power Inductor Case: 5.8mm x 5.8mm x 3.9mm
- DC Resistance Max: 0.12ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2018)
- Q Factor: 19
- Q Test Frequency: 7.96MHz
- Self Resonant Frequency Min: 38MHz
