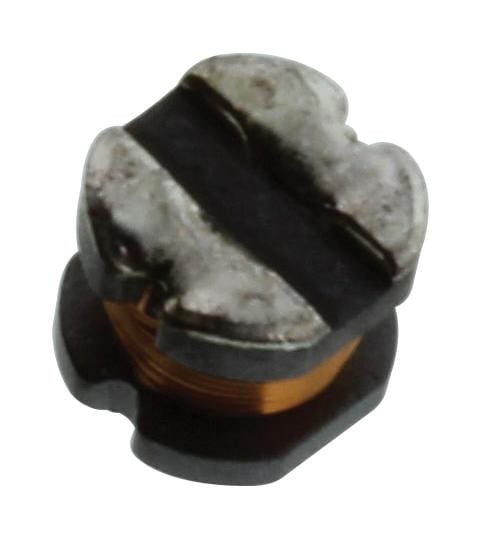

BOURNS - SDR0603-270ML - Power Inductor (SMD), 27 µH, 670 mA, Unshielded, 860 mA, SDR0603, 5.8mm x 5.8mm x 3.9mm
- Inductance: 27µH
- RMS Current (Irms): 670mA
- Inductor Construction: Unshielded
- Saturation Current (Isat): 860mA
- Product Range: SDR0603 Series
- Power Inductor Case: 5.8mm x 5.8mm x 3.9mm
- DC Resistance Max: 0.3ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2018)
- Q Factor: 19
- Q Test Frequency: 2.52MHz
- Self Resonant Frequency Min: 19MHz
