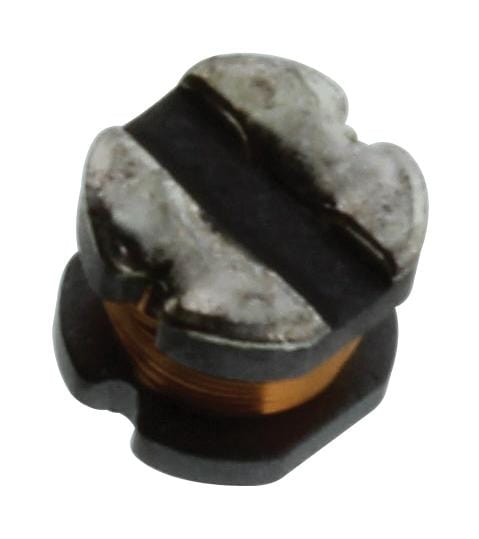

BOURNS - SDR0302-391KL - Power Inductor (SMD), 390 µH, 120 mA, Unshielded, 140 mA, SDR0302, 3mm x 2.8mm x 2.5mm
- Inductance: 390µH
- RMS Current (Irms): 120mA
- Inductor Construction: Unshielded
- Saturation Current (Isat): 140mA
- Product Range: SDR0302 Series
- Power Inductor Case: 3mm x 2.8mm x 2.5mm
- DC Resistance Max: 10.8ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2018)
- Q Factor: 40
- Q Test Frequency: 796kHz
- Self Resonant Frequency Min: 5.5MHz
