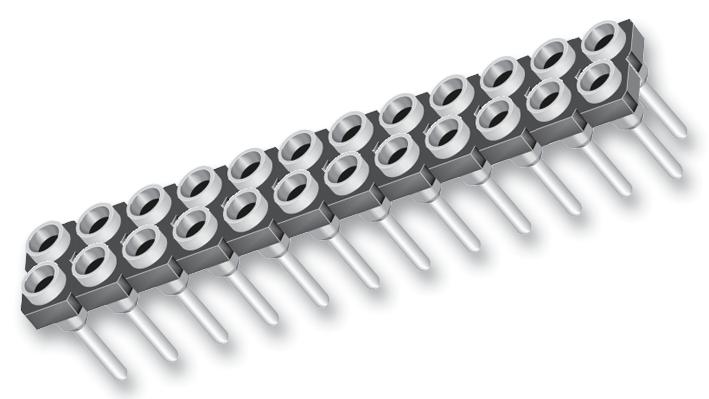

SAMTEC - SDL-120-T-10 . - PCB Receptacle, Low Profile Hybrid, Board-to-Board, 2.54 mm, 2 Rows, 40 Contacts
- Pitch Spacing: 2.54mm
- No. of Contacts: 40Contacts
- Gender: Receptacle
- Product Range: SDL Series
- Contact Termination Type: Through Hole
- No. of Rows: 2Rows
- Contact Plating: Gold Plated Contacts
- Contact Material: Beryllium Copper
- SVHC: No SVHC (15-Jan-2018)
- Colour: Black
- Contact Resistance: 10mohm
- Contact Termination: Through Hole Vertical
- Current Rating: 1A
- External Length / Height: 3.1mm
- Lead Spacing: 2.54mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Row Pitch: 2.54mm
- Termination Method: Solder
