SDC-4-023 Switch, Dil, DT, 4WAY Erg Components

ERG COMPONENTSUGS :SDC-4-023 Code de commande:422848

Prix:
Prix ​​promotionnel€36,27

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (537 unité)

Documents et téléchargements

description

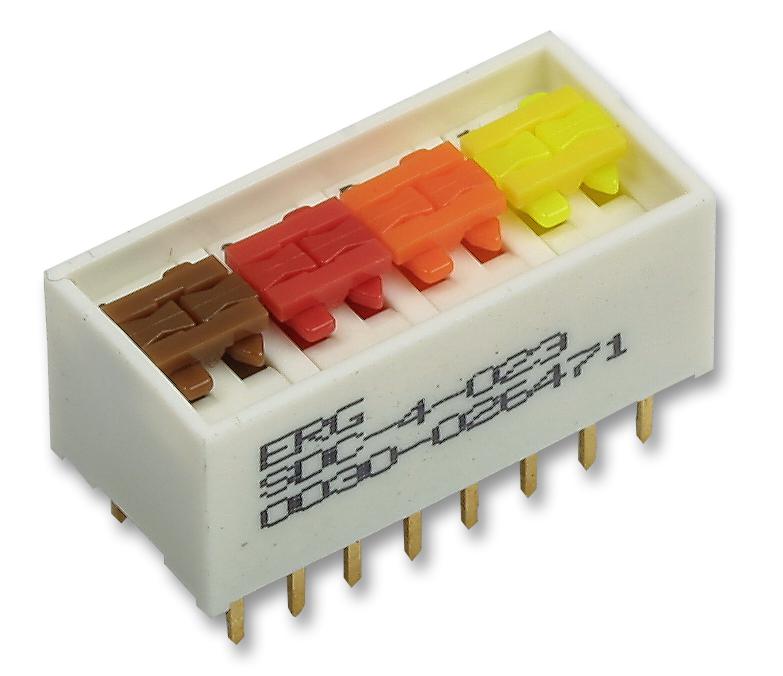

ERG COMPONENTS - SDC-4-023 - DIP / SIP Switch, 4 Circuits, Slide, Through Hole, SPDT, 100 V, 1 A

  • No. of Circuits: 4Circuits
  • Switch Actuator Style: Slide
  • Switch Mounting: Through Hole
  • Contact Configuration: SPDT
  • Contact Voltage DC Max: 100V
  • Contact Current DC Max: 1A
  • Product Range: SDD Series
  • Switch Type: -
  • SVHC: No SVHC (17-Dec-2015)
  • Contact Current AC Max: 1A
  • Contact Current Rating: 1A
  • Contact Resistance: 20mohm
  • Contact to Contact Capacitance: 1pF
  • Dielectric Strength VDC: 500V
  • External Length / Height: 8.8mm
  • External Width: 10.5mm
  • Insulation Resistance: 100000Mohm
  • Lead Spacing: 2.54mm
  • Length: 22mm
  • Material: Glass Filled Polyamide
  • No. of Mechanical Operations: 30000
  • No. of Positions: 4Ways
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -55°C
  • Pin Configuration: DIL
  • Pitch Spacing: 2.54mm
  • Row Pitch: 7.62mm
