description

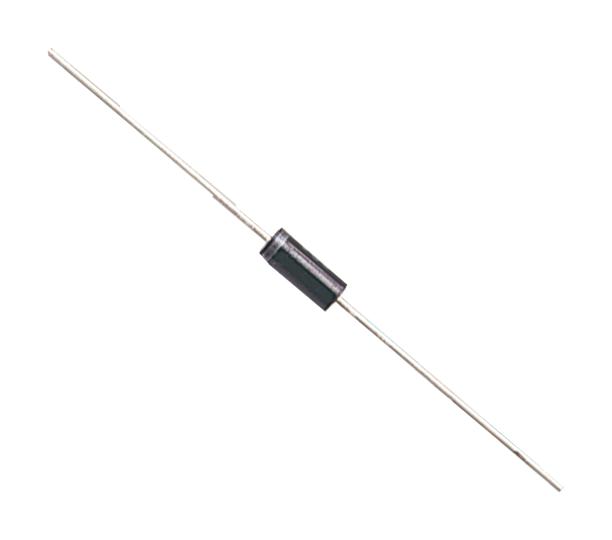

VISHAY - SBYV27-100-E3/54 - Fast / Ultrafast Diode, 100 V, 2 A, Single, 1.07 V, 15 ns, 80 A
- Repetitive Reverse Voltage Vrrm Max: 100V
- Forward Current If(AV): 2A
- Diode Configuration: Single
- Forward Voltage VF Max: 1.07V
- Reverse Recovery Time trr Max: 15ns
- Forward Surge Current Ifsm Max: 80A
- Operating Temperature Max: 150°C
- Diode Case Style: DO-15
- No. of Pins: 2 Pin
- Product Range: SB Series
- Automotive Qualification Standard: -
- SVHC: Lead (15-Jan-2019)
- Alternate Case Style: DO-204AC
- Current Ifsm: 50A
- Diode Type: Soft Recovery
- External Diameter: 3.6mm
- External Length / Height: 7.6mm
- Flammability Rating: UL94V-0
- Forward Voltage: 1.07V
- Junction Temperature Tj Max: 150°C
- No. of Pins: 2Pins
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Reverse Recovery Time trr Typ: 15ns
