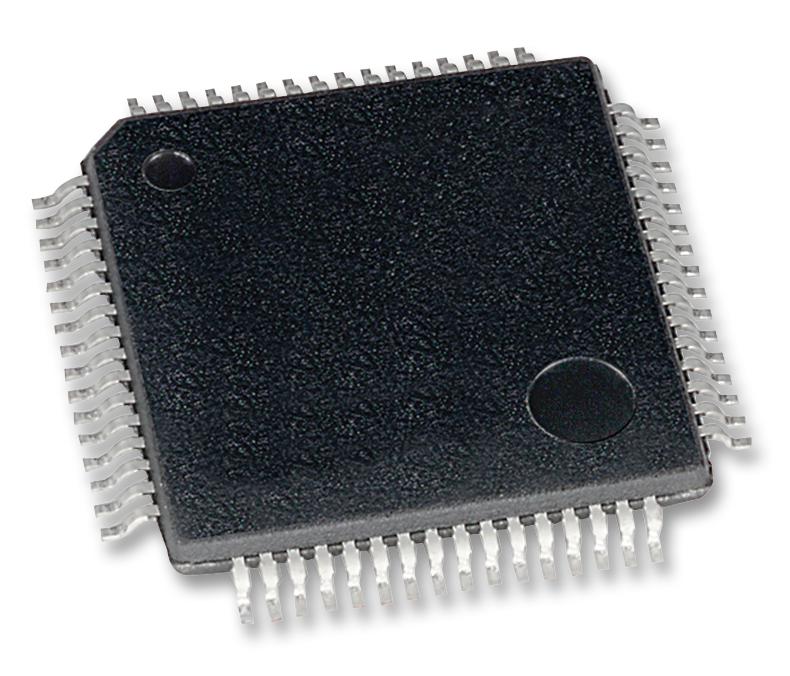

NXP - S9S12P128J0CQK - Microcontroller, S12 Family S12P Series Microcontrollers, HCS12, 16bit, 32 MHz, 128 KB, 6 KB
- Product Range: S12 Family S12P Series Microcontrollers
- Architecture: HCS12
- No. of Bits: 16bit
- CPU Speed: 32MHz
- Program Memory Size: 128KB
- RAM Memory Size: 6KB
- No. of Pins: 80Pins
- MCU Case Style: QFP
- No. of I/O's: 64I/O's
- Embedded Interface Type: CAN, SCI, SPI
- Supply Voltage Min: 3.15V
- Supply Voltage Max: 5.5V
- MCU Family: S12
- MCU Series: S12P
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q100
- Controller Family/Series: S12P
- EEPROM Memory Size: 4KB
- MPU Core Size: 16bit
- No. of PWM Channels: 6
- No. of Timers: 8
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External, Internal
- Peripherals: ADC, PWM, Timer
- Program Memory Size: 128KB
- Supply Voltage Range: 3.15V to 5.5V
