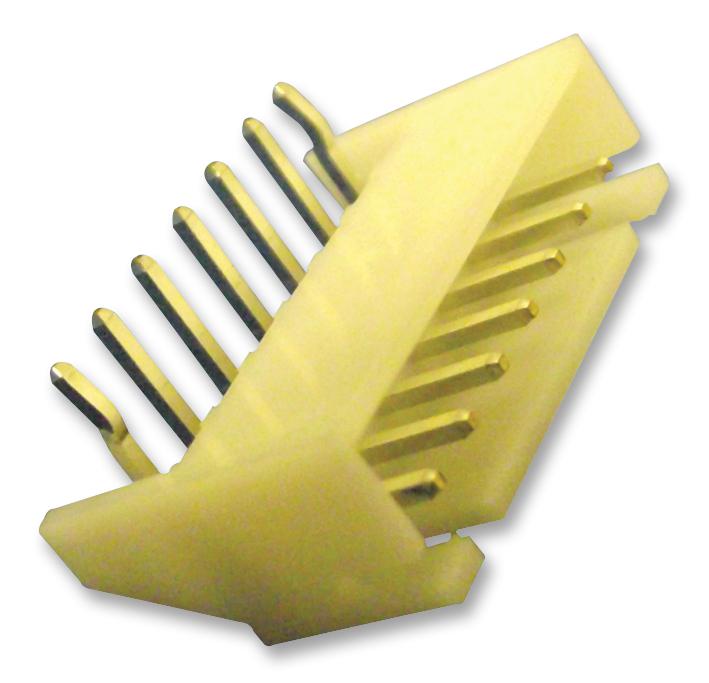

JST (JAPAN SOLDERLESS TERMINALS) - S7B-XH-A (LF)(SN) - Pin Header, Right Angle, Wire-to-Board, 2.5 mm, 1 Rows, 7 Contacts, Through Hole Right Angle, XH
- Pitch Spacing: 2.5mm
- No. of Contacts: 7Contacts
- Gender: Header
- Product Range: XH Series
- Contact Termination Type: Through Hole
- No. of Rows: 1Rows
- Contact Plating: Tin Plated Contacts
- Contact Material: Brass
- SVHC: No SVHC (17-Dec-2015)
- Contact Resistance: 10mohm
- Current Rating: 3A
- Insulation Resistance: 1000Mohm
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
- Voltage Rating VAC: 250V
- Wire Size AWG Max: 22AWG
- Wire Size AWG Min: 30AWG
- Withstand Voltage: 1000V
