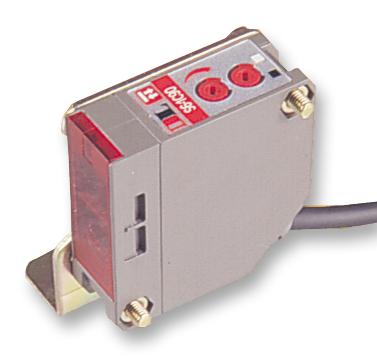

DATASENSOR - S6-1C90 - Photoelectric Sensor, S6 Series, Universal, MIDI, Diffuse, 900 mm, Relay, 115 to 264 Vac/dc
- Sensing Range Max: 900mm
- Sensing Method: Diffuse
- Sensor Output: Relay
- Product Range: S6 Series
- Connection Method: Cable
- Supply Voltage DC Min: 15V
- Supply Voltage DC Max: 264V
- SVHC: No SVHC (15-Jan-2018)
- Contact Voltage AC Max: 275VAC
- Contact Voltage DC Max: 275VDC
- External Depth: 50mm
- External Length / Height: 50mm
- External Width: 18mm
- Frequency Response Max: 500Hz
- IP / NEMA Rating: IP65
- Lead Length: 2m
- Operating Temperature Max: 55°C
- Operating Temperature Min: -15°C
- Output Current Max: 3A
- Power Consumption: 35mW
- Response Time: 30ms
- Sensing Distance Max: 900mm
- Sensing Distance Min: 1cm
- Sensing Range: 10mm to 900mm
- Sensor Input: Optical
- Supply Voltage AC Max: 264V
- Supply Voltage AC Min: 15V
- Supply Voltage Range DC: 10V to 30V
- Switching Current AC Max: 3A
- Switching Current DC Max: 3A
