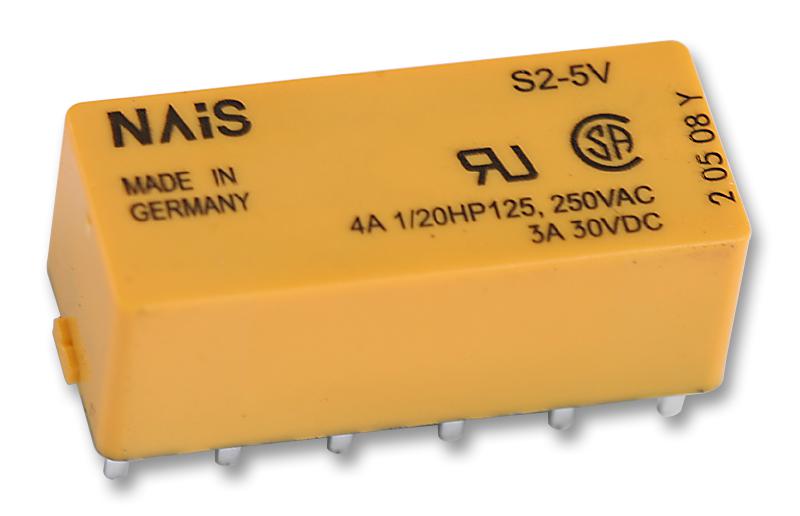

s2-DC5V Relay, 2NO, 2NC, 250VAC, 30Vdc, 4A Panasonic

PANASONICUGS :S2-DC5V Code de commande:1175721

Prix:
Prix ​​promotionnel€30,02

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (117 unité)

Documents et téléchargements

description

PANASONIC - S2-DC5V - General Purpose Relay, S Series, Power, Non Latching, DPST-NO, DPST-NC, 5 VDC

  • Contact Configuration: DPST-NO, DPST-NC
  • Coil Voltage: 5VDC
  • Contact Current: 4A
  • Product Range: S Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Alloy
  • Coil Resistance: 130ohm
  • SVHC: No SVHC (07-Jul-2017)
  • Approval Bodies: CSA
  • Approval Category: UL Recognised
  • Coil Current: 38.5mA
  • Coil Operating Lower Percent Limit: 65%
  • Coil Operating Upper Percent Limit: 140%
  • Coil Voltage VDC Nom: 5V
  • Contact Current AC Max: 4A
  • Contact Current DC Max: 3A
  • Contact Current Max: 4A
  • Contact Current Min: 100µA
  • Contact Resistance: 50mohm
  • Contact Voltage AC Max: 250V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 30V
  • Contact Voltage DC Nom: 30V
  • DC Coil Power: 192mW
  • Dielectric Voltage Coil to Contact: 1500VAC
  • Dielectric Voltage Contact to Contact: 750VAC
  • External Depth: 10.2mm
  • External Height: 28.4mm
  • External Length / Height: 28.4mm
  • External Width: 12.5mm
  • Lead Spacing: 5.08mm
