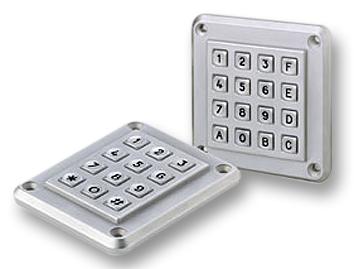

S.12X00.342 Keypad, 12 Key, Telephone EOZ

EOZ - S.12X00.342 - Keypad, S, 3 x 4, Matrix, Chromed Zinc, 5 mA, 5 V

• Product Range: S Series
• Keypad Array: 3 x 4
• Keypad Output: Matrix
• Housing Material: Chromed Zinc
• Contact Current Max: 5mA
• Contact Voltage DC Nom: 5V
• No. of Keys: 12
• Panel Cutout Width: 63mm
• Panel Cutout Height: 82mm
• SVHC: No SVHC (15-Jun-2015)
• Breakdown Voltage Vbr: 5000V
• Colour: Silver
• Contact Current DC Max: 5mA
• Contact Current Rating: 5mA
• Contact Resistance: 200mohm
• Contact Voltage DC Max: 24V
• Contact Voltage DC Min: 500mV
• Current I LED pk: 20mA
• Dielectric Strength VDC: 1500V
• External Depth: 10mm
• External Length / Height: 115mm
• External Width: 95mm
• Height: 82mm
• IP / NEMA Rating: IP67
• Insulation Resistance: 1000Mohm
• LED Current: 240mA
• LED Voltage: 2.5V
• Material: Chromed Zamac
• No. of Mechanical Operations: 4000000
• Operating Force: 3N
• Operating Temperature Max: 85°C
• Operating Temperature Min: -25°C
• Travel: 1.3mm
