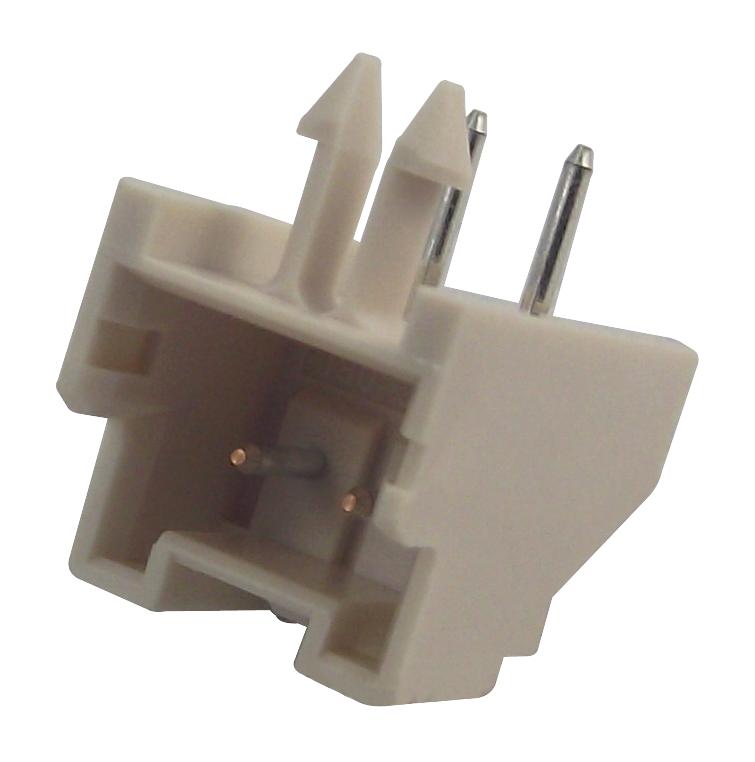

S02B-XASS-1(LF)(Sn) Header, 90Deg, 2WAY JST (Japan Solderless Terminals)

JST (JAPAN SOLDERLESS TERMINALS)UGS :S02B-XASS-1(LF)(SN) Code de commande:9492135

Prix:
Prix ​​promotionnel€0,67

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1596 unité)

Documents et téléchargements

description

JST (JAPAN SOLDERLESS TERMINALS) - S02B-XASS-1(LF)(SN) - Pin Header, Shrouded, Wire-to-Board, 2.5 mm, 1 Rows, 2 Contacts, Through Hole Right Angle, XA

  • Pitch Spacing: 2.5mm
  • No. of Contacts: 2Contacts
  • Gender: Header
  • Product Range: XA Series
  • Contact Termination Type: Crimp
  • No. of Rows: 1Rows
  • Contact Plating: Tin Plated Contacts
  • Contact Material: Brass
  • SVHC: No SVHC (27-Jun-2018)
  • Colour: Ivory
  • Contact Resistance Max: 10mohm
  • Current Rating: 3A
  • External Depth: 12.6mm
  • External Width: 7.5mm
  • Flammability Rating: UL94V-0
  • Height: 7.6mm
  • Insulation Resistance: 1000Mohm
  • Lead Length: 3.4mm
  • Material: Nylon 6.6
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -25°C
  • Voltage Rating V DC: 250V
  • Voltage Rating VAC: 250V
  • Wire Size AWG Max: 20AWG
  • Wire Size AWG Min: 28AWG
  • Withstand Voltage: 1000VAC
