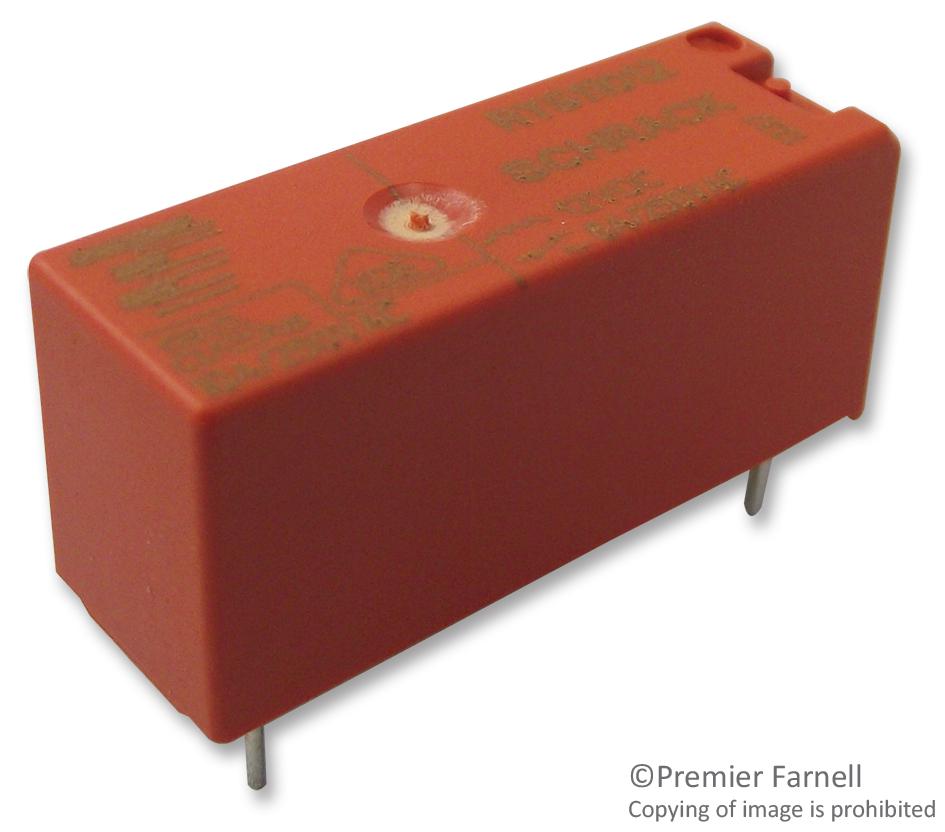

SCHRACK - TE CONNECTIVITY - 1-1393225-9 - General Purpose Relay, RYII Series, Power, Non Latching, SPDT, 12 VDC, 8 A
- Contact Configuration: SPDT
- Coil Voltage: 12VDC
- Contact Current: 8A
- Product Range: RYII Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Contact Voltage VAC: 250VAC
- Relay Terminals: Solder
- Contact Voltage VDC: -
- Contact Material: Silver Nickel
- Coil Resistance: 627ohm
- SVHC: No SVHC (27-Jun-2018)
- Approval Bodies: VDE
- Approval Category: UL Recognised
- Approvals & Standards: VDE
- Coil Current: 19.3mA
- Coil Voltage VDC Nom: 12V
- Contact Current AC Max: 8A
- Contact Current Max: 8A
- Contact Voltage AC Max: 400V
- Contact Voltage AC Nom: 240V
- Current Rating: 8A
- DC Coil Power: 200mW
- Dielectric Voltage Coil to Contact: 5000VAC
- Dielectric Voltage Contact to Contact: 1000VAC
- External Depth: 10.1mm
- External Height: 12.3mm
- External Length / Height: 12.3mm
- External Width: 28.5mm
- Lead Spacing: 3.2mm
- Must Actuate Voltage: 8.4VDC
- No. of Pins: 5Pins
- Nom Operating Power: 230mW
- Operating Frequency Max: 1200Hz
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
- Weight: 8g
