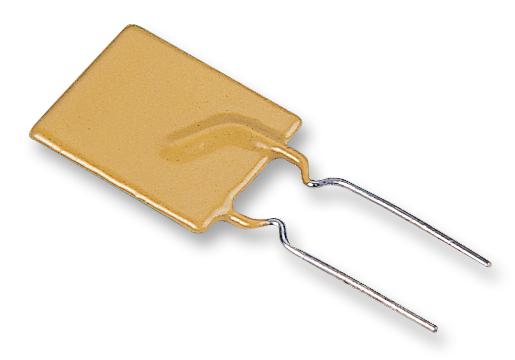

RUEF185 PolySwitch, Radial, 1.85A LITTELFUSE

LITTELFUSEUGS :RUEF185 Code de commande:1175847

Prix:
Prix ​​promotionnel€0,76

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2960 unité)

Documents et téléchargements

description

LITTELFUSE - RUEF185 - Resettable Fuse, PPTC, PolySwitch RUEF, 30 VDC, 1.85 A, 3.7 A, 8.7 s, Round

  • Thermistor Mounting: Through Hole
  • Product Range: PolySwitch RUEF Series
  • Holding Current: 1.85A
  • Tripping Current: 3.7A
  • Voltage Rating: 30VDC
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jun-2015)
  • Approval Bodies: CSA, TUV
  • Approval Category: UL Recognised
  • Carrying Current Max: 100A
  • External Depth: 3mm
  • External Length / Height: 15.7mm
  • External Width: 10.2mm
  • Flammability Rating: UL94V-0
  • Height: 15.7mm
  • Holding Current Max Ih: 1.85A
  • Initial Resistance Max: 0.09ohm
  • Initial Resistance Min: 0.03ohm
  • Lead Diameter: 0.51mm
  • Lead Length: 7.6mm
  • Lead Spacing: 5.1mm
  • Operating Voltage: 30V
  • PTC Fuse Case Style: Radial Leaded
  • Reset Time: 20s
  • Surface Tripped Temperature Max: 125°C
  • Thermistor Type: PTC Resettable Fuse
