RTO050F12R00JTE1 Res, 12R, 5%, 50W, TO-220, Thick Film Vishay

VISHAYUGS :RTO050F12R00JTE1 Code de commande:1140227

Prix:
Prix ​​promotionnel€15,22

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1287 unité)

Documents et téléchargements

description

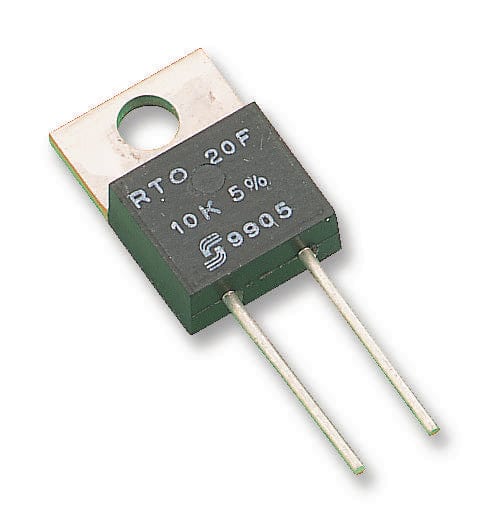

VISHAY - RTO050F12R00JTE1 - Through Hole Resistor, 12 ohm, RTO, 50 W, ± 5%, TO-220, 300 V

  • Resistance: 12ohm
  • Product Range: RTO Series
  • Power Rating: 50W
  • Resistance Tolerance: ± 5%
  • Resistor Case Style: TO-220
  • Voltage Rating: 300V
  • Resistor Element Material: Thick Film
  • Temperature Coefficient: ± 150ppm/°C
  • Automotive Qualification Standard: -
  • Element Limiting Voltage: 300V
  • External Depth: 4.5mm
  • External Length / Height: 28.7mm
  • External Width: 10.1mm
  • Full Power Rating Temperature: 25°C
  • Lead Length: 13.7mm
  • Operating Temperature Max: 155°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +155°C
  • Overload Capability: 2 x pr for 5 secs
  • Power Rating with Heatsink: 50W
  • Resistor Mounting: Through Hole
  • Temperature Coeff. +: 150ppm/°C
  • Temperature Coeff. -: 150ppm/°C
  • Thermal Resistance: 2.6°C/W
  • Tolerance +: 5%
  • Tolerance -: 5%
  • Voltage Rating V DC: 300V
