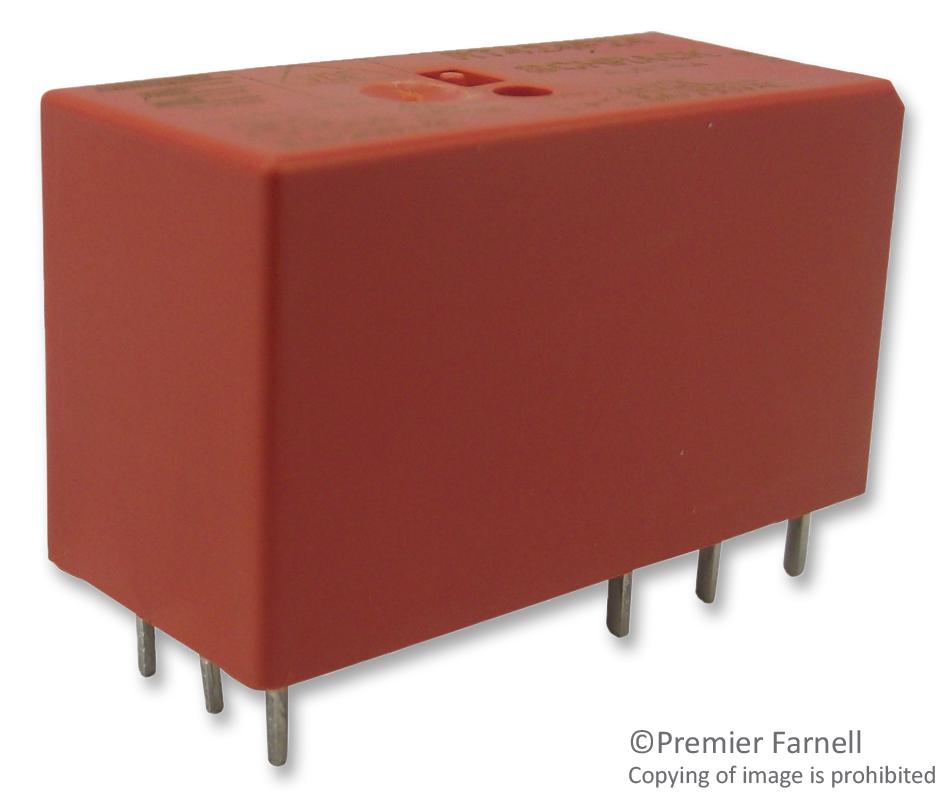

SCHRACK - TE CONNECTIVITY - 5-1393243-6 - Power Relay, DPDT, 24 VDC, 8 A, RT2, Through Hole, Latching Dual Coil
- Contact Configuration: DPDT
- Coil Voltage: 24VDC
- Contact Current: 8A
- Product Range: RT2 Series
- Relay Mounting: Through Hole
- Coil Type: Latching Dual Coil
- Contact Voltage VAC: 250VAC
- Relay Terminals: Solder
- Contact Voltage VDC: -
- Contact Material: Silver Nickel
- Coil Resistance: 886ohm
- SVHC: No SVHC (27-Jun-2018)
- Approval Bodies: CSA, VDE
- Approval Category: UL Recognised
- Approvals & Standards: CSA, UL, VDE
- Coil Current: 16.7mA
- Coil Voltage VDC Nom: 24V
- Contact Current AC Max: 8A
- Contact Current Max: 8A
- Contact Voltage AC Max: 250V
- Contact Voltage AC Nom: 240V
- Contact Voltage DC Max: 30V
- DC Coil Power: 400mW
- Dielectric Voltage Coil to Contact: 5kV
- Dielectric Voltage Contact to Contact: 1kV
- External Depth: 29mm
- External Height: 15.7mm
- External Length / Height: 15.7mm
- External Width: 12.7mm
- Insulation Resistance: 10000Mohm
- Lead Spacing: 5mm
- Must Actuate Voltage: 16.8V
- Nom Operating Power: 650mW
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
- Weight: 10g
