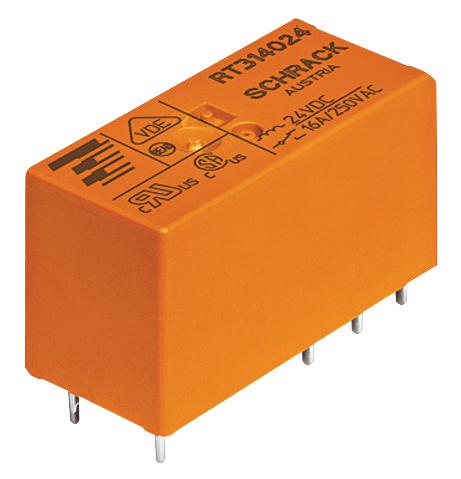

RT31C012 Relay, SPST, 250VAC, 16A Te Connectivity

TE CONNECTIVITYUGS :1415900-2 Code de commande:1770612

Prix:
Prix ​​promotionnel€11,18

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (657 unité)

Documents et téléchargements

description

TE CONNECTIVITY - 1415900-2 - General Purpose Relay, Power PCB Relay RT1 Series, Power, Non Latching, SPST, 12 VDC, 16 A

  • Contact Configuration: SPST
  • Coil Voltage: 12VDC
  • Contact Current: 16A
  • Product Range: RT1 Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: -
  • Contact Material: Silver Nickel
  • Coil Resistance: 360ohm
  • SVHC: No SVHC (15-Jan-2018)
  • Approvals & Standards: CSA, UL, VDE
  • Coil Voltage VDC Nom: 12V
  • Contact Current DC Max: 16A
  • Contact Current Max: 16A
  • Contact Voltage AC Max: 400V
  • Contact Voltage AC Nom: 250V
  • External Depth: 12.7mm
  • External Height: 16mm
  • External Length / Height: 16mm
  • External Width: 29mm
  • Nom Operating Power: 400mW
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Relay Type: Power
