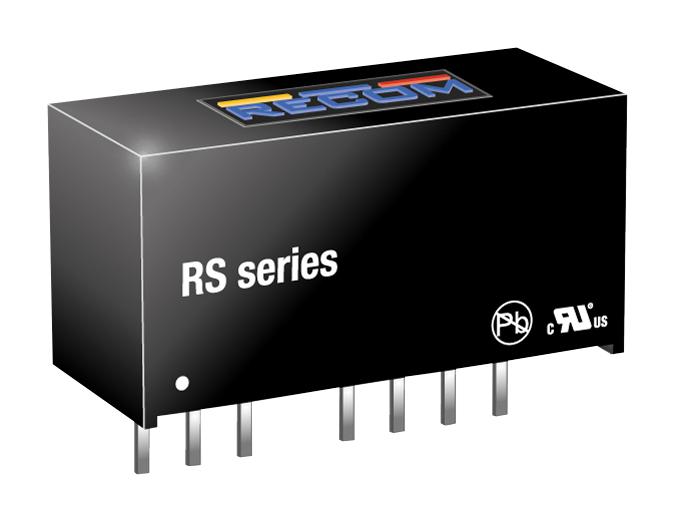

RECOM POWER - RS-1212D - Isolated Through Hole DC/DC Converter, Medical, 2:1, 2 W, 2 Output, 12 V, 83 mA
- No. of Outputs: 2 Output
- Output Power Max: 2W
- Output Voltage - Output 1: 12V
- Output Current - Output 1: 83mA
- Output Voltage - Output 2: -12V
- Output Current - Output 2: 83mA
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: -
- Input Voltage DC Min: 9V
- Input Voltage DC Max: 18V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: SIP
- DC / DC Converter Mounting: Through Hole
- Width: 9.2mm
- Height: 11.1mm
- Depth: 21.8mm
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: EN
- Efficiency Max: 83%
- External Depth: 11.1mm
- External Length / Height: 21.8mm
- External Width: 9.2mm
- Isolation Voltage: 1kV
- No. of Outputs: 2Outputs
- Operating Temperature Max: +85°C
- Operating Temperature Min: -40°C
- Power Rating: 2W
