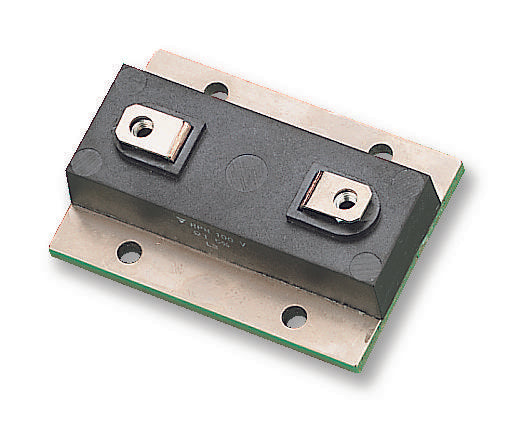

RPH100V10R00JB Resistor, 100W 10R Vishay

VISHAYUGS :RPH100V10R00JB Code de commande:1141538

Prix:
Prix ​​promotionnel€108,93

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (20 unité)

Documents et téléchargements

description

VISHAY - RPH100V10R00JB - Resistor, 10 ohm, RPH 100, 100 W, ± 5%, Screw, 1.9 kV

  • Resistance: 10ohm
  • Product Range: RPH 100 Series
  • Power Rating: 100W
  • Resistance Tolerance: ± 5%
  • Resistor Terminals: Screw
  • Voltage Rating: 1.9kV
  • Resistor Element Material: Thick Film
  • Temperature Coefficient: ± 150ppm/°C
  • Element Limiting Voltage: 1900V
  • External Depth: 21.6mm
  • External Length / Height: 65.5mm
  • External Width: 46.7mm
  • Fixing Centres LxW: 35 x 37
  • Fixing Hole Diameter: 4.2mm
  • Full Power Rating Temperature: 25°C
  • Insulation Resistance: 1000000Mohm
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +125°C
  • Overload Capability: 4 x Pr for 5 secs
  • Power Rating with Heatsink: 100W
  • Resistor Mounting: Panel
  • Temperature Coeff. +: 150ppm/°C
  • Temperature Coeff. -: 150ppm/°C
  • Thermal Resistance: 0.55°C/W
  • Tolerance +: 5%
  • Tolerance -: 5%
