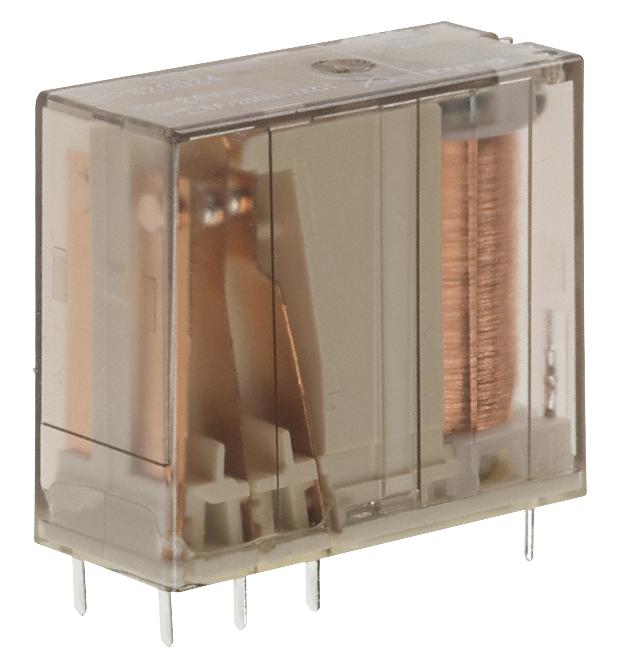

SCHRACK - TE CONNECTIVITY - 1393845-4 - General Purpose Relay, RPII/2 Series, Power, Non Latching, DPDT, 12 VDC, 8 A
- Contact Configuration: DPDT
- Coil Voltage: 12VDC
- Contact Current: 8A
- Product Range: RPII/2 Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Contact Voltage VAC: 250VAC
- Relay Terminals: Solder
- Contact Voltage VDC: -
- Contact Material: Silver Nickel
- Coil Resistance: 270ohm
- SVHC: No SVHC (12-Jan-2017)
- Approval Bodies: KEMA-KEUR, SEV, VDE
- Approval Category: UL Recognised
- Coil Current: 21.8mA
- Coil Voltage VDC Nom: 12V
- Contact Current AC Max: 8A
- Contact Current DC Max: 8A
- Contact Current Max: 8A
- Contact Voltage AC Max: 250V
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Max: 21.6V
- DC Coil Power: 500mW
- Dielectric Voltage Coil to Contact: 4kV
- Dielectric Voltage Contact to Contact: 2.5kV
- External Depth: 25.5mm
- External Height: 29mm
- External Length / Height: 29mm
- External Width: 12.6mm
- IP / NEMA Rating: IP67
- No. of Pins: 8Pins
- Nom Operating Power: 500mW
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
- Operating Time: 8ms
- Release Time: 2ms
- Weight: 18g
