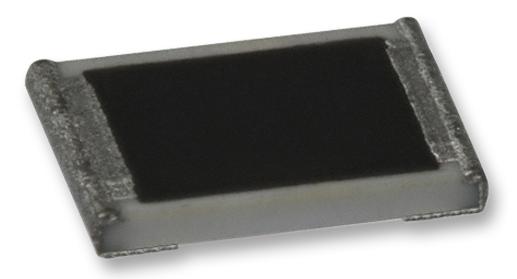

HOLSWORTHY - TE CONNECTIVITY - RP73D2B1K96BTG - SMD Chip Resistor, 1.96 kohm, ± 0.1%, 250 mW, 1206 [3216 Metric], Thin Film, Precision
- Resistor Case Style: 1206 [3216 Metric]
- Resistance: 1.96kohm
- Product Range: RP73 Series
- Voltage Rating: 200V
- Resistor Element Material: Thin Film
- Power Rating: 250mW
- Resistance Tolerance: ± 0.1%
- Temperature Coefficient: ± 15ppm/°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- External Depth: 0.6mm
- External Length / Height: 3.2mm
- External Width: 1.6mm
- No. of Pins: 2Pins
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +155°C
- Resistor Mounting: Surface Mount Device
