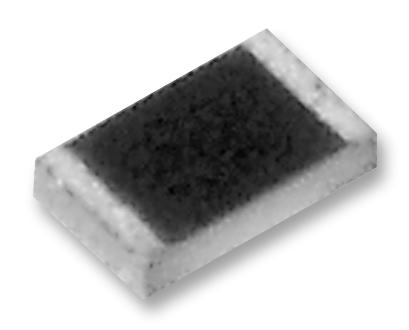

HOLSWORTHY - TE CONNECTIVITY - RP73D1J80R6BTDG - SMD Chip Resistor, 80.6 ohm, ± 0.1%, 100 mW, 0603 [1608 Metric], Thin Film, Precision
- Resistor Case Style: 0603 [1608 Metric]
- Resistance: 80.6ohm
- Product Range: RP73 Series
- Voltage Rating: 50V
- Resistor Element Material: Thin Film
- Power Rating: 100mW
- Resistance Tolerance: ± 0.1%
- Temperature Coefficient: ± 15ppm/°C
- Automotive Qualification Standard: -
- External Depth: 0.8mm
- External Length / Height: 0.4mm
- External Width: 1.6mm
- No. of Pins: 2Pins
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +155°C
- Overload Voltage: 100V
- Resistor Mounting: Surface Mount Device
