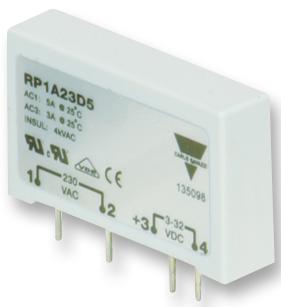

RP1A23D5 Solid State Relay Carlo GAVAZZI

CARLO GAVAZZIUGS :RP1A23D5 Code de commande:1704171

Prix:
Prix ​​promotionnel€39,31

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (55 unité)

Documents et téléchargements

description

CARLO GAVAZZI - RP1A23D5 - Solid State Relay, SPST, 5 A, 265 Vrms, PCB, Through Hole, Zero Crossing

  • Contact Configuration: SPST
  • Load Current: 5A
  • Operating Voltage Max: 265Vrms
  • Relay Mounting: PCB
  • Relay Terminals: Through Hole
  • Switching Mode: Zero Crossing
  • Operating Voltage Min: 12Vrms
  • Control Voltage Min: 3VDC
  • Control Voltage Max: 32VDC
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Control Voltage DC Max: 32VDC
  • Control Voltage DC Min: 3VDC
  • Control Voltage Range: 3V DC to 32V DC
  • Control Voltage Type: DC
  • Input Voltage: 3V DC to 32V DC
  • Load Current RMS Max: 5A
  • Load Voltage Range: 12Vrms to 265Vrms
  • Operating Voltage Range: 12Vrms to 265Vrms
  • RMS Load Voltage Max: 265V
  • RMS Load Voltage Min: 12V
  • Surge Current: 80A
